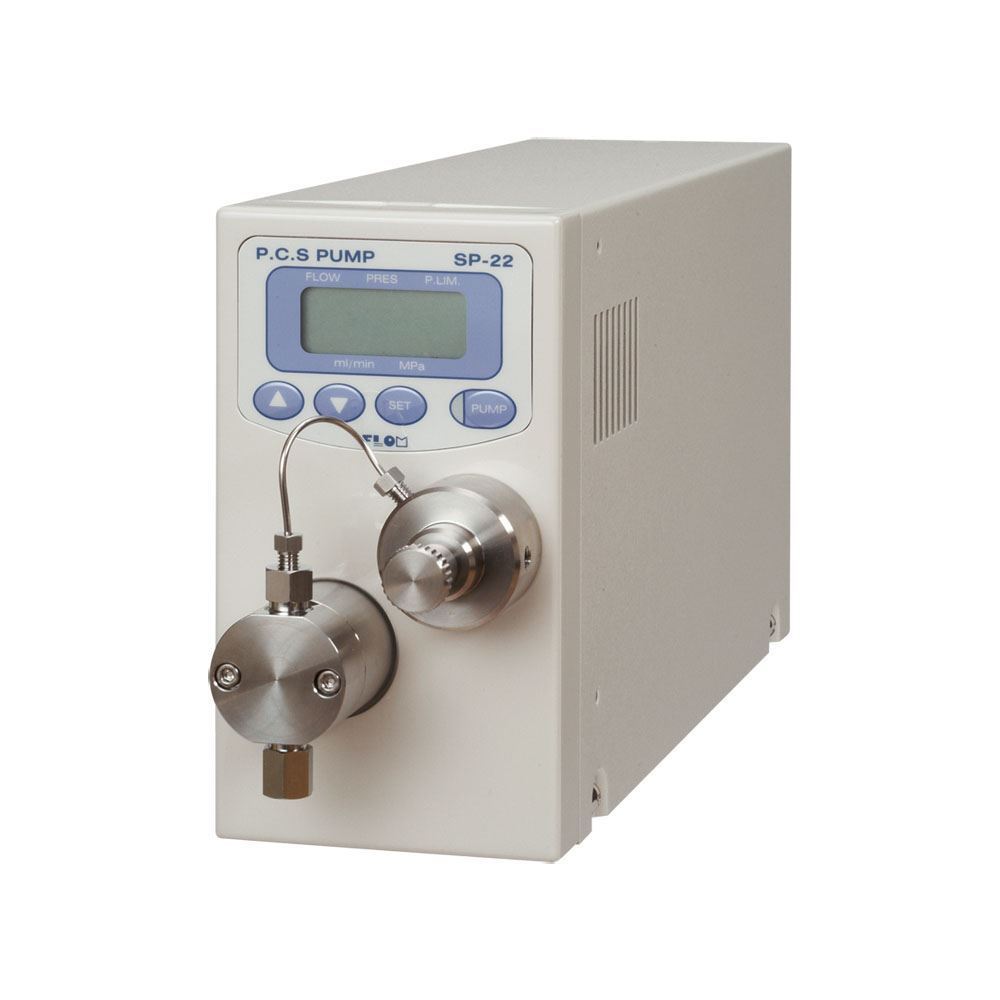

Single Plunger Pump with Pressure Sensor-PEEK, 2 mL/min., 20 MPa

Features

• Can choose Quick Return mode for Pulse Control
• Low-cost, simple to operate single plunger pump.
• Equipped with pulse reduction mechanism (quick return mode).
• Real-time pressure display.
• Pressure sensor allows setting upper/lower limits
• 10 separate configurations of flow range/pumphead material
• Convenient precision metered solvent volume dispensing.
• RS232C control protocol
• Choose from 5 different models to match desired flow ranges.

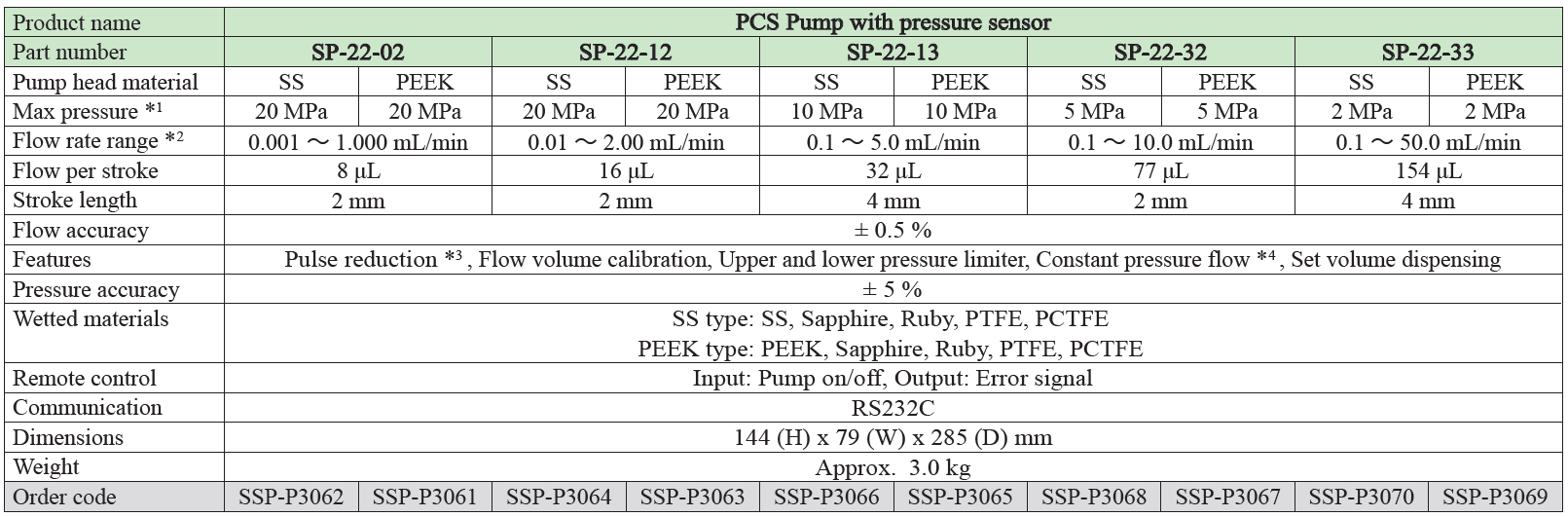

*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
*2: The unit cannot run continuously at maximum flow rate.
*3: Pulse reduction does not imply that pulses will be eliminated completely.
*4: Constant pressure flow mode adjusts the flow rate in real time to stabilize the pressure at the set range.
Note: The specifications and product design may change without prior notice.
