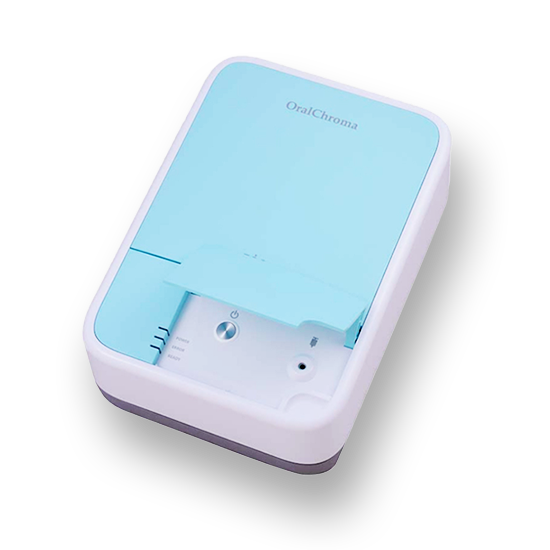

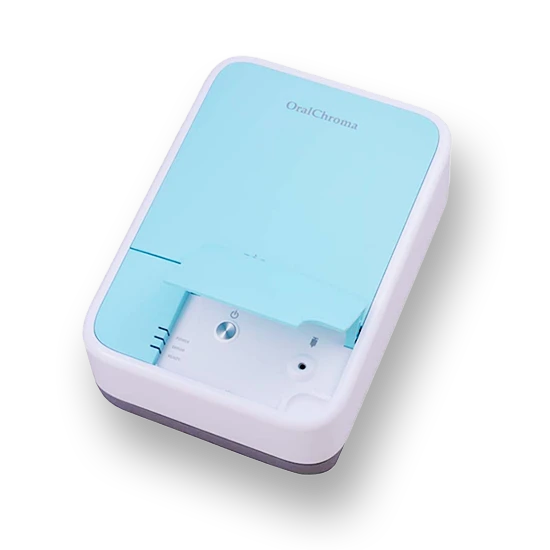

OralChroma Halitosis Measuring Device

SKU: CHM-2
$7,900.00
Quickly & Easily Measure Halitosis With High Precision

Quickly detect volatile sulfur compounds – the primary components of halitosis: hydrogen sulfide, methyl mercaptan, and dimethyl sulfide – using OralChroma's highly sensitive semiconductor detector and integrated column for efficient sample gas separation.

Highlights

  • High sensitivity and accuracy
  • Easy operation & fast halitosis measurement
  • Easy on patients
  • Maintenance free
  • Sophisticated data management software included
*
  • Not available
  • Not available
+ -

Specifications

OralChroma Halitosis Measuring Device SKU: CHM-2

Top pick for dentists, universities, & labs  (Over 2000 units sold globally since 2002)



OralChroma

Halitosis Measuring Device



Measuring major oral gas components with high precision



OralChroma separates volatile sulfur compounds in oral breath into three major chemicals: hydrogen sulfide, methyl mercaptan, and dimethyl sulfide, and measures their concentrations. This feature is very helpful for identifying halitosis and confirming the effects of treatment



  • High sensitivity and accuracy
    Realize high measurement accuracy with gas chromatograph using original semiconductor gas sensor and small column.
  • Easy operation and fast measurement
    Measurement begins automatically after a simple breath injection and is completed in just 4 minutes!
  • Easy on patients
    Sample breath quickly using a small syringe.



  • Maintenance free
    Long-life sensor & column offer consistent reliability, requiring no maintenance for 2 years.
  • Sophisticated data management software included
    Get visual halitosis measurements and manage patients' data history.

Data Management Software Included
(DataManager)


DataManager is graphical software that provides halitosis strength level measurements & assists in managing patients' data history.
The device works by having a patient blow into a disposable syringe-like container, which is then
inserted into the OralChroma device for analysis. The device provides a readout of the
concentrations of each VSC, allowing for targeted treatment and intervention.

Data Management Software Included (DataManager)



DataManager is graphical software that provides halitosis strength level measurements & assists in managing patients' data history.
The device works by having a patient blow into a disposable syringe-like container, which is then
inserted into the OralChroma device for analysis. The device provides a readout of the
concentrations of each VSC, allowing for targeted treatment and intervention.

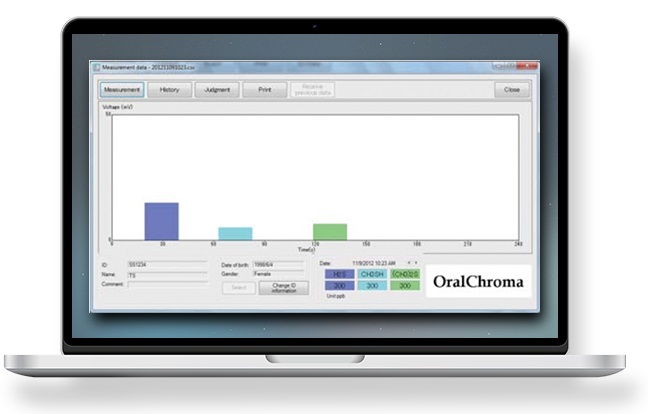

Breath Measurement View

Two real-time measuring view models are available. Simple mode (as shown below): A simple bar graph display. Chromatogram mode: A full-range chromatogram display.

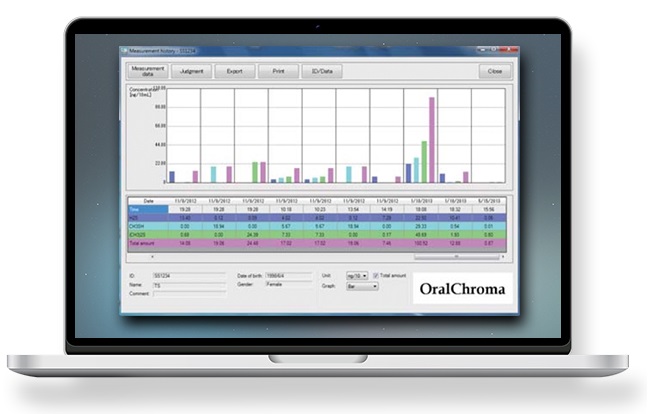

Measurement History View

The progress and effectiveness of treatment can be easily understood through numerical values and graphs. This is helpful when explaining to patients.


Easily sample breath using syringe

With OralChroma's portability, you have the freedom to place it wherever you prefer, no permanent installation needed.
Step
1
Insert the supplied
syringe up to the stopper
into the oral cavity and
hold the syringe between
the front teeth.
Step
2
Close mouth tightly.
Step
3
Wait 30 seconds to one minute to have
enough oral gas.
Step
4
Slowly pull the plunger,
push it in and pull it out
again before removing
the syringe from the
mouth.
Step
5
Wipe the top of the
syringe with a tissue.
Eject the remaining gas
until it reaches 1.0ml (cc)
bu pushing the plunge
Step
6
Inject the remaining oral
gas into the inlet of the
OralChroma. The
measurement will start
automatically.


OralChroma Specifications



Product OralChroma
Detection Method Simple gas chromatography using semiconductor gas sensor
Detection gas Following components included in volatile sulfur compounds:
1.Hydrogen sulfide  2.Methyl mercaptan  3.Dimethyl sulfide
Operating Temp 10 to 30℃
Storage Temp -20 to 60℃
Power Supply 100 to 240V AC、50/60Hz
Size 280(W)×170(H)×385(D) (mm)
External Interface USB

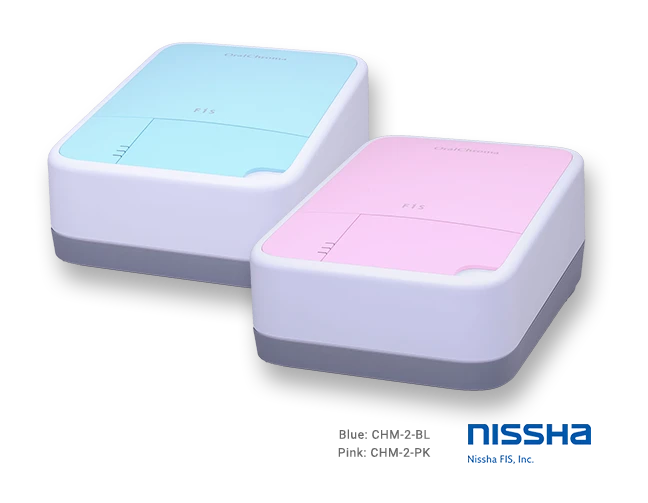

Model CHM-2 (Blue: CHM-2-BL, Pink: CHM-2-PK)
Sample amount 1.0cc
Measuring time 4 minutes
Measuring Unit ng/10ml and ppb
Sampling Method Manual sampling with a syringe
Operating Humidity 80% RH or less (no condensation)
Storage Humidity 20 to 90% RH (no condensation)
Power Consumption 60VA
Weight 4kg
OS for attached software OralChromaDataManager

  • This product is a measuring device
  • This product requires a personal computer
  • This product does not include a personal computer



Accesories



Part # Item Price
CHM-2 SYRINGE Syringe w/o needle, 100 pcs. / box $52.00 Add to cart
