The MP-32 Intelligent Micro Pump is specially designed for needs of continuous low-pulsation flow in micro-liter scale flow range.
Smaller pump design saves space and increase possibility of making OEM built-in specification
FLOM’s unique design concept reduces
pulsing to an absolute minimum.
Reliable, stable flow at low flow rates.
Several parts could be reduced by
applying the new high performance valve.
The greatest advantage of the plunger
pump is its reliable, continuous flow at
high pressures.
| Product Name | Intelligent Micro Pump | ||
| Product Number | MP-32-110S | MP-32-110P | |

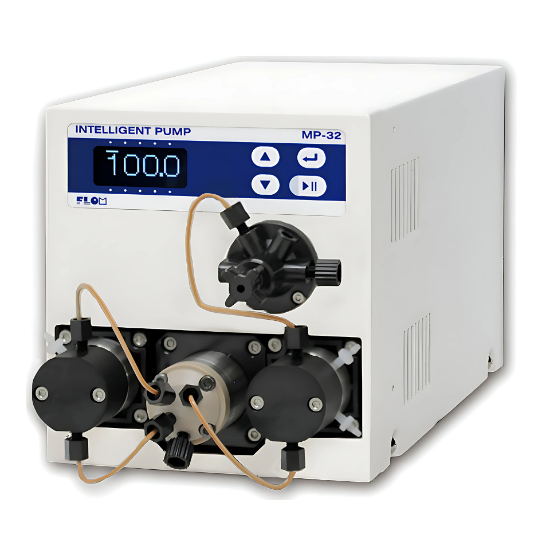

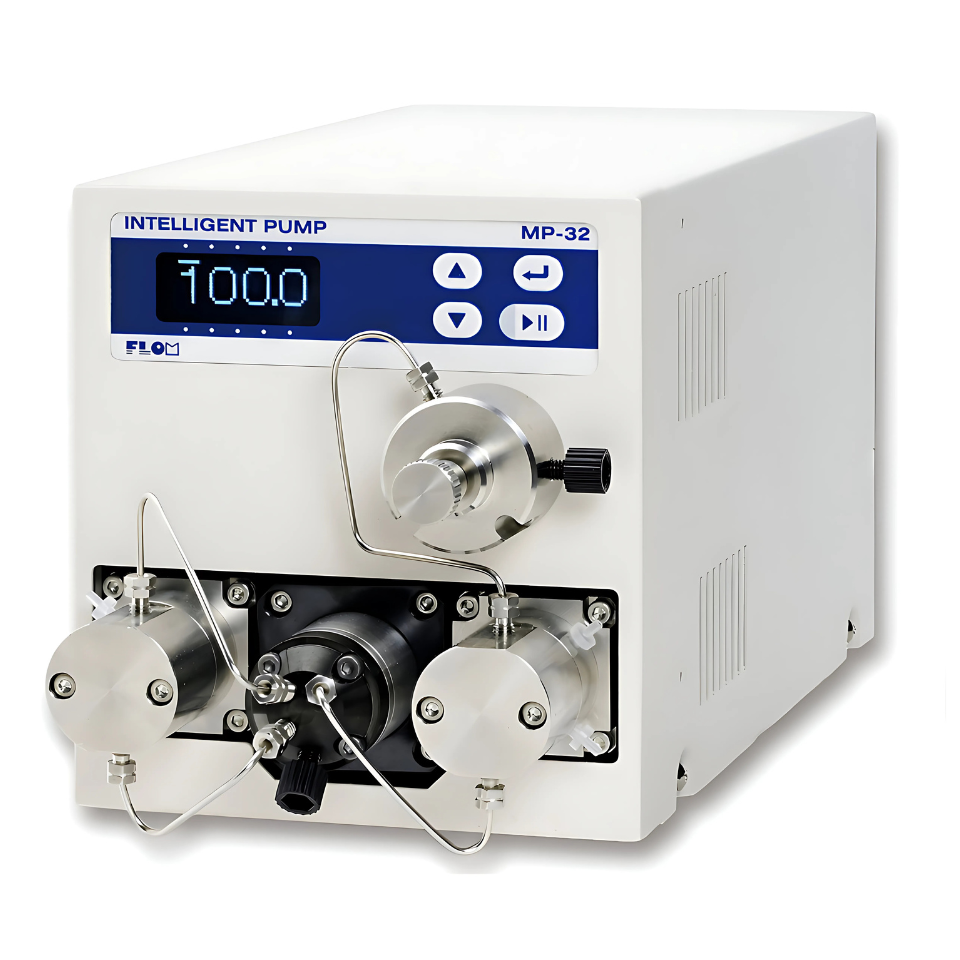

| Pump Head Material | SUS316 | PEEK | |
| Max Pressure*¹ | 40 MPa (5800 psi) | 20 MPa (2900 psi) | |
| Flow Rate Range*² | 0.1 ~ 500.0 μL/min | ||
| Flow Per Stroke | 80 μL | ||
| Plunger Stroke | 10 mm | ||
| Flow Repeatability*² | < 0.3 % RSD (10 ~ 250 μL/min) | ||
| Flow Accuracy*² | ± 2.0 % or ± 0.2 μL /min or less, whichever is greater (at 250 μL/min or the lower ) | ||
| Flow Mode | Continuous flow mode , Timer flow mode | ||
| Safety Function | Upper / lower pressure limiters | ||
| Pressure Accuracy | ± 0.2 MPa (± 29 psi) | ||
| Wetted Materials | SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , ELGILOY®*³ , PEEK , SUS316 PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK | ||
| Remote Control | Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V input : Flow rate setup , DC1-5V Output : Pressure signal | ||
| Communication | RS232C , RS485 (between FLOM devices) | ||
| Dimensions | 150 (H) × 150 (W) × 240 (D) mm , excluding protuberances | ||
| Weight | Approx. 5.1 kg | ||
| Power | AC100 ~ 240V (50 / 60 Hz) , MAX 250 VA | ||
| Environment Temperature | 5 ~ 40 ℃ , 20 ~ 80 % RH (Non-condensing) | ||
| Order Code | SMP-P5501 | SMP-P5502 | |
| *1: Maximum pressure is only sustained intermittently, this does not mean maximum pressure under continuous use. *2: Test data generated under FLOM’s standard test conditions. *3: ELGILOY® is a registered trademark of the Elgiloy Specialty Metals. |
|||
