The UI-32 Intelligent Pump is a high-precision pump which provides ultra-low pulsation flow. New real-time pressure control system equalizes the pump’s internal/external pressure to ensure stable continuous flow.
Designed for OEM integration and efficient use of bench space, the UI-32 delivers precision without bulk.
The greatest advantage of the plunger pump is its reliable, continuous flow at high pressure.
The pump minimizes automatically pulsation with adjusting flow condition.
The independently controlled linear-drives compress air bubbles to ensure stable flow.
| Product Name | Intelligent Pump | |||||
| Product Number | UI-32-110S | UI-32-110P | UI-32-110D | UI-32-410S | UI-32-410P | UI-32-410D |

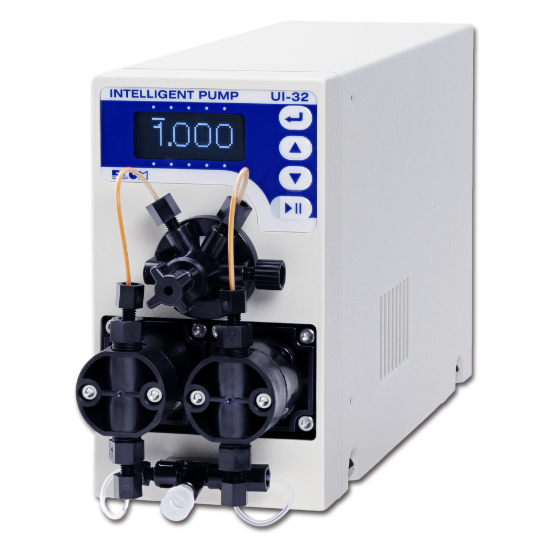

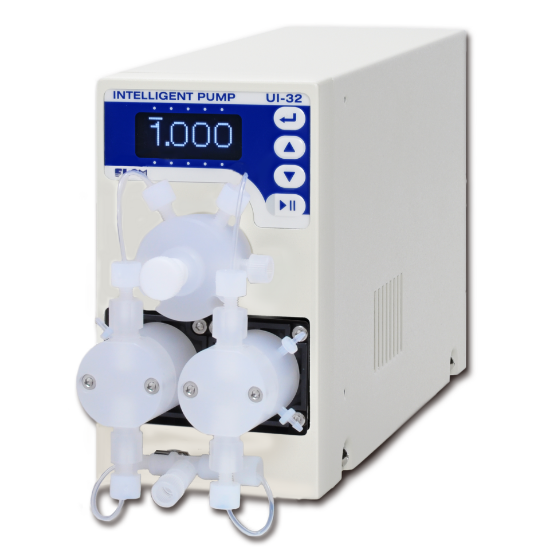

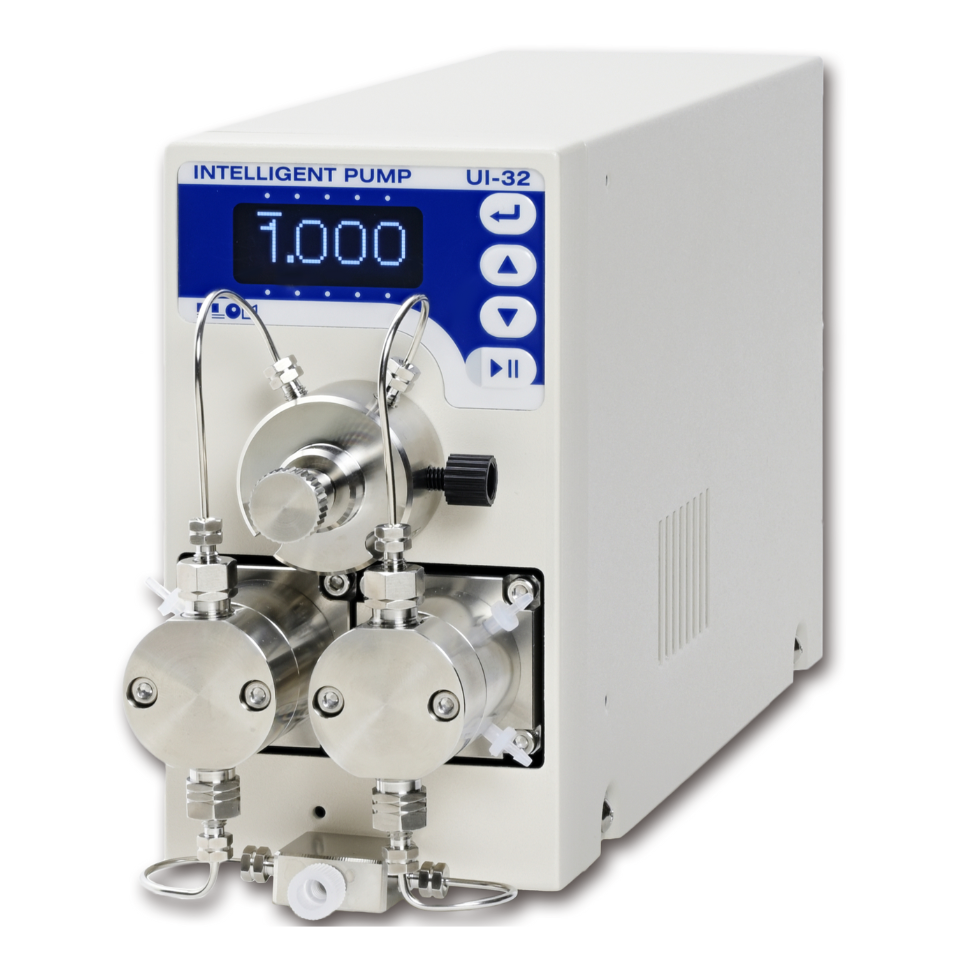

| Pump Head Material | SUS316 | PEEK | PCTFE | SUS316 | PEEK | PCTFE |
| Max Pressure*¹ | 40 MPa (5800 psi) | 20 MPa (2900 psi) | 5 MPa (725 psi) | 5 MPa (725 psi) | 5 MPa (725 psi) | 2 MPa (290 psi) |
| Flow Rate Range*² | 0.001 ~ 9.999 mL/min | 0.01 ~ 99.99 mL/min | ||||
| Flow Per Stroke | 80 μL | 718 μL | ||||
| Plunger Stroke | 10 mm | 10 mm | ||||
| Flow Repeatability*² | < 0.3 % (0.1 ~ 5.0 mL/min) | < 0.3 % (1 ~ 50 mL/min) | ||||
| Flow Accuracy*² | ± 2.0 % or ± 2 μL/min or less, whichever is greater (at 5 mL/min or the lower) | ± 2.0 % or ± 20 μL/min or less, whichever is greater (at 50 mL/min or the lower) | ||||
| Flow Mode | Continuous flow mode , Consistent pressure flow mode , Timer flow mode | |||||
| Safety Function | Upper / lower pressure limiters | |||||
| Pressure Accuracy | ± 0.2 MPa (± 29 psi) | |||||
| Wetted Materials | SUS: Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , ELGILOY®*³ , PEEK , SUS316 PEEK: Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK ,ETFE PCTFE: Sapphire , Ruby , PCTFE , PFA , PTFE , ETFE , FFKM |
|||||
| Remote Control | SUS/PEEK - Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V input : Flow rate setup , DC1-5V Output : Pressure signal PCTFE - Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) |
|||||
| Communication | RS232C , RS485 (between FLOM devices) | |||||
| Dimensions | 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances | |||||
| Weight | Approx. 3.8 kg | Approx. 3.0 kg | Approx. 3.8 kg | Approx. 3.8 kg | Approx. 3.0 kg | Approx. 3.8 kg |
| Power | AC100 ~ 240V (50 / 60 Hz) , MAX 80 VA | |||||
| Environment Temperature | 5 ~ 40 ℃ , 20 ~ 80 % RH (Non-condensing) | |||||
| Order Code | SLP-P5006 | SLP-P5008 | SLP-P5010 | SLP-P5011 | ||
| *1: Maximum pressure is only sustained intermittently, this does not mean maximum pressure under continuous use. *2: Test data generated under FLOM’s standard test conditions. *3: ELGILOY® is a registered trademark of the Elgiloy Specialty Metals. |
||||||
