Compact High Precision Pump



with Automated Backpressure Regulation for Flow Chemistry







Highlights



UI-32 Intelligent Pump
BP-11 Auto Back Pressure Regulator

The UI-32 Intelligent Pump and BP-11 Auto Backpressure Regulator are an integrated system designed to bring consistent flow to flow reactors for optimal reaction conditions.

The UI-32 Intelligent Pump delivers a stable, low-pulsation flow rate and connects to the BP-11 Auto Backpressure Regulator for hands-free pressure management. With a choice of multiple flow path materials, you can find the correct pumping solution for your flow process set-up.



Compact & High-Precision Pump

Small footprint with dual-plunger design for accurate, low-pulsation flow.

Automated Pressure Management

BP-11 Auto Backpressure Regulator provides real-time pressure control for optimal system conditions.

Easy Installation

Minimal tubing work required with industry-standard RS232C signal connections.

Broad Material Compatibility

Available in stainless steel, PEEK, and PCTFE for compatibility with a wide range of liquids.

Manufactured by FLOM

A GL Sciences Company, a leader in high-performance HPLC pumps and valves since 1990.

Free Trial Available

Experience the benefits of the UI-32 Intelligent Pump and BP-22 Auto Backpressure Regulator with a no-cost trial.

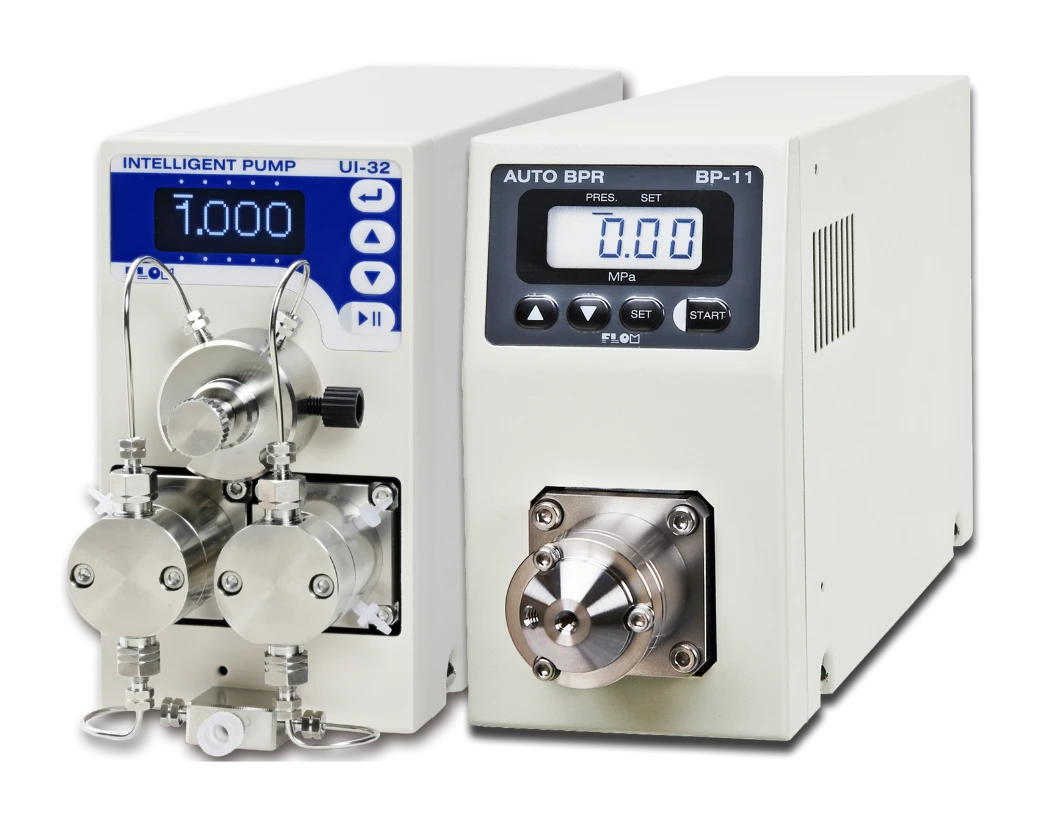

Package Solution for Flow Chemistry



The UI-32 Intelligent Pump and BP-11 Auto Backpressure Regulator seamlessly combine to meet the pumping and system regulation needs of flow chemistry.

This package delivers both the pumping (forward) solution as well as the regulation requirement (back) needed for flow processes. Full control of system conditions is delivered from two points along the system—in front of  and after the flow reactor. This allows for optimal conditions for system operation including temperature and pressure.




Conducting reactions at high temperature and pressure is often a requirement for efficient process, however, components boiling is a significant issue. The UI-32 Intelligent Pump and BP-11 Auto Backpressure Regulator can easily achieve high temperatures with a highly sensitive pressure control system that is fully automated for faster reaction rates and enhanced control over any volatile or gaseous components.

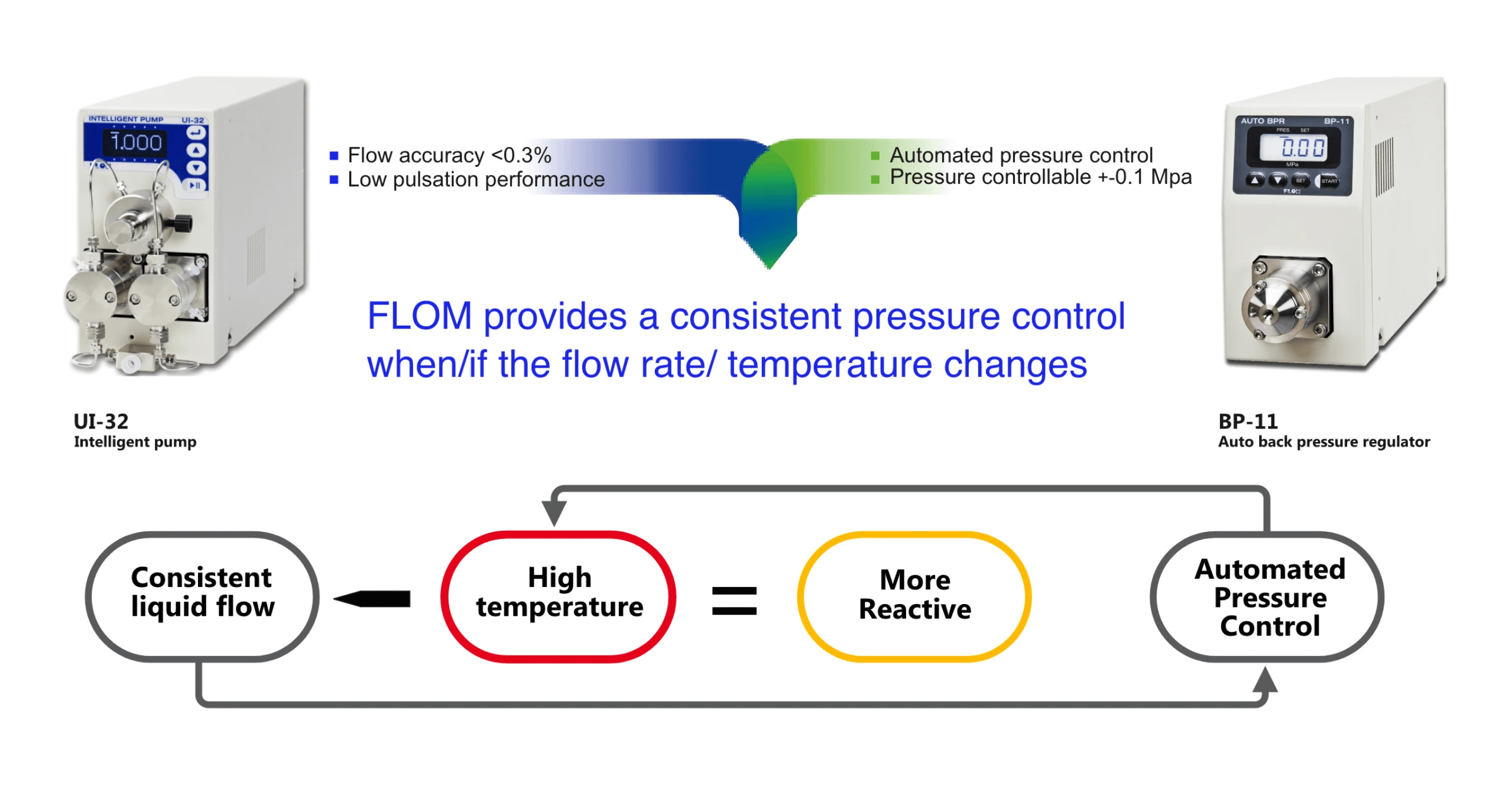

Consistent Pressure Control

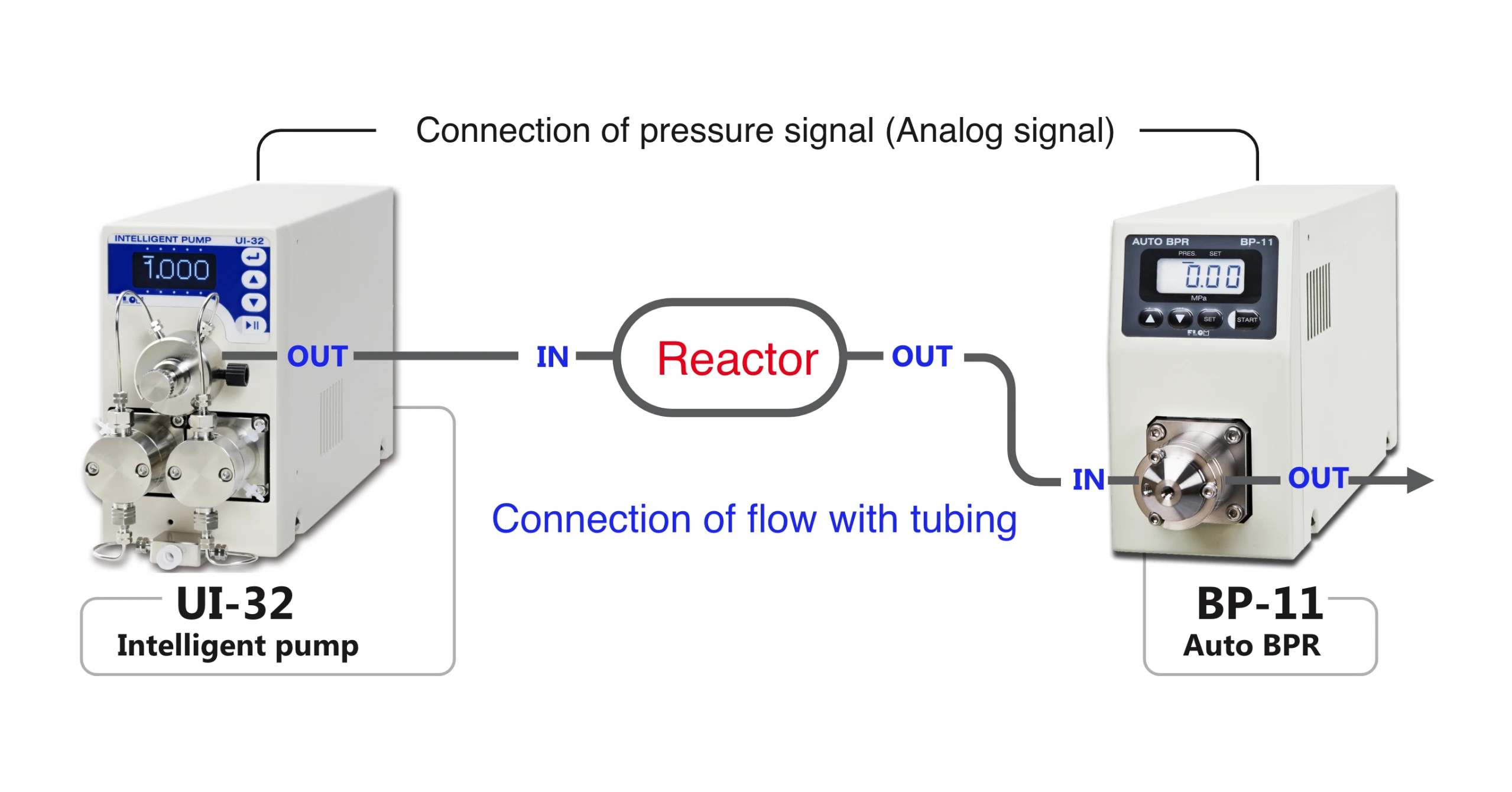

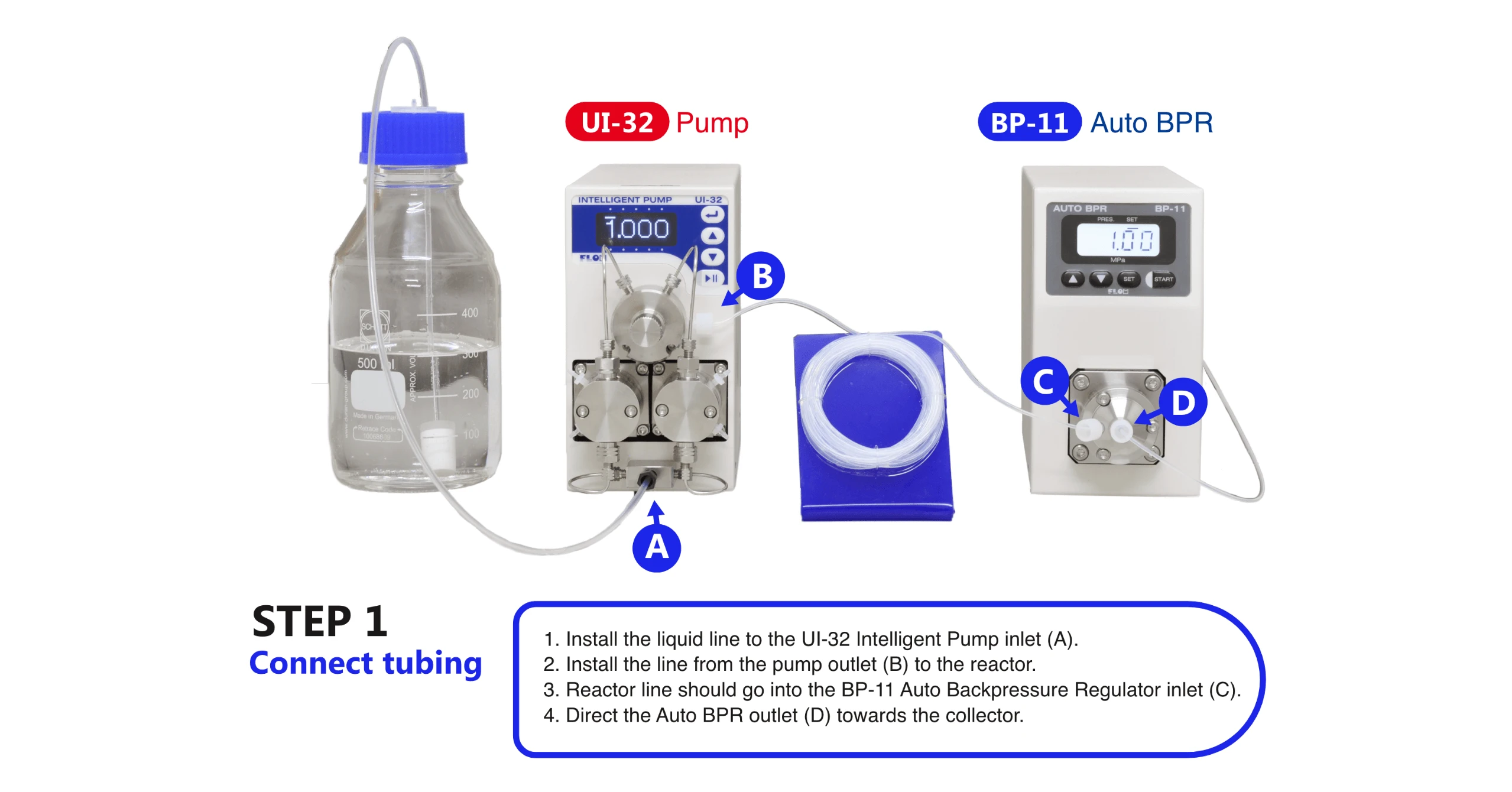

Simple and Easy Installation

The UI-32 Intelligent Pump and BP-11 Auto Backpressure Regulator are very simple to set up. Minimal tubing work is necessary, with each component having complete internal tubing. Signal connections are established via an industry-standard RS232C cable.

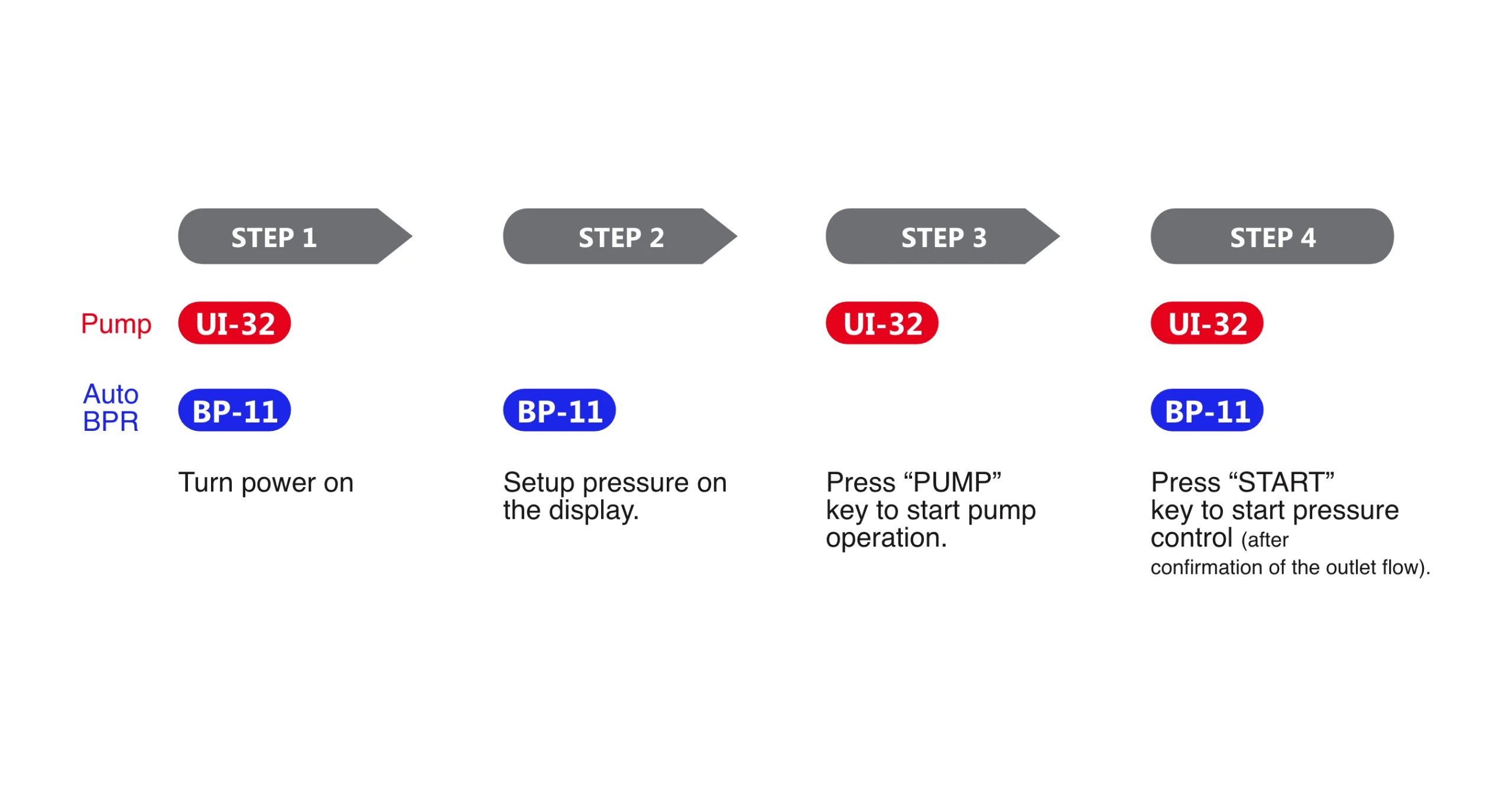

Convenient Operation

Parameters can be set using a straightforward user interface. Simply input the parameters for the pump and regulator to begin your process.

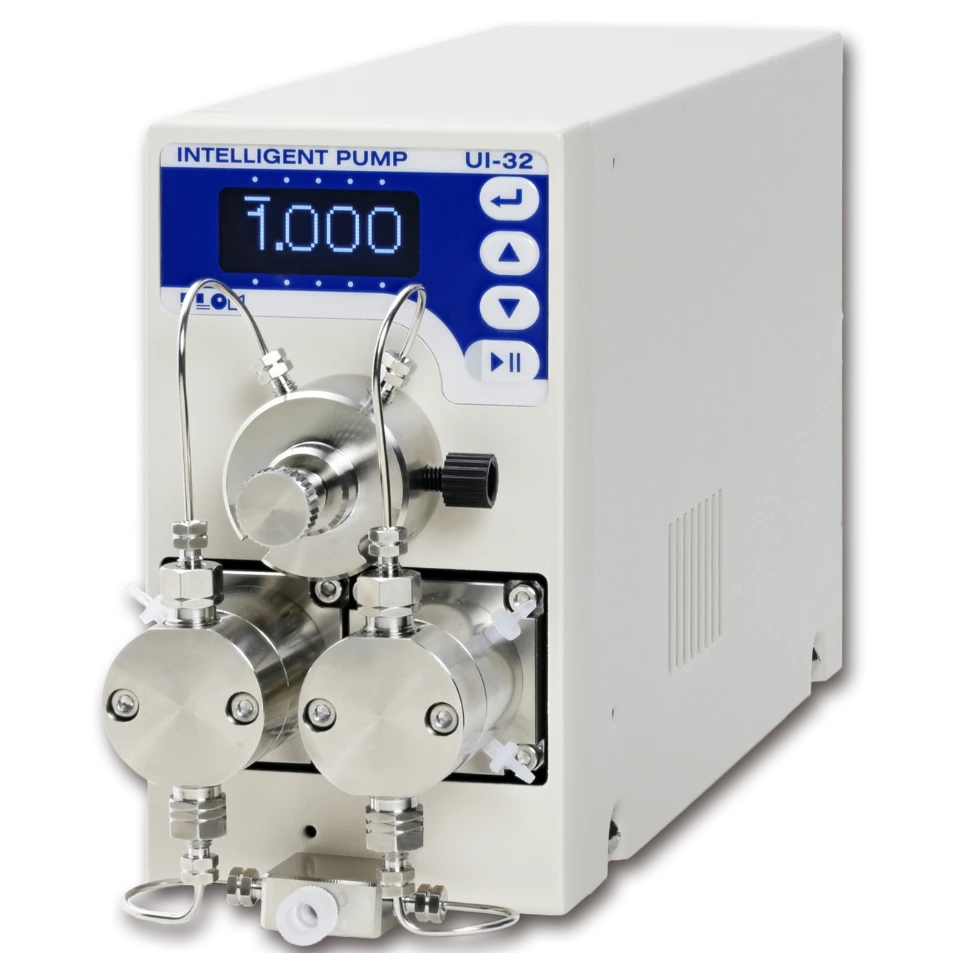

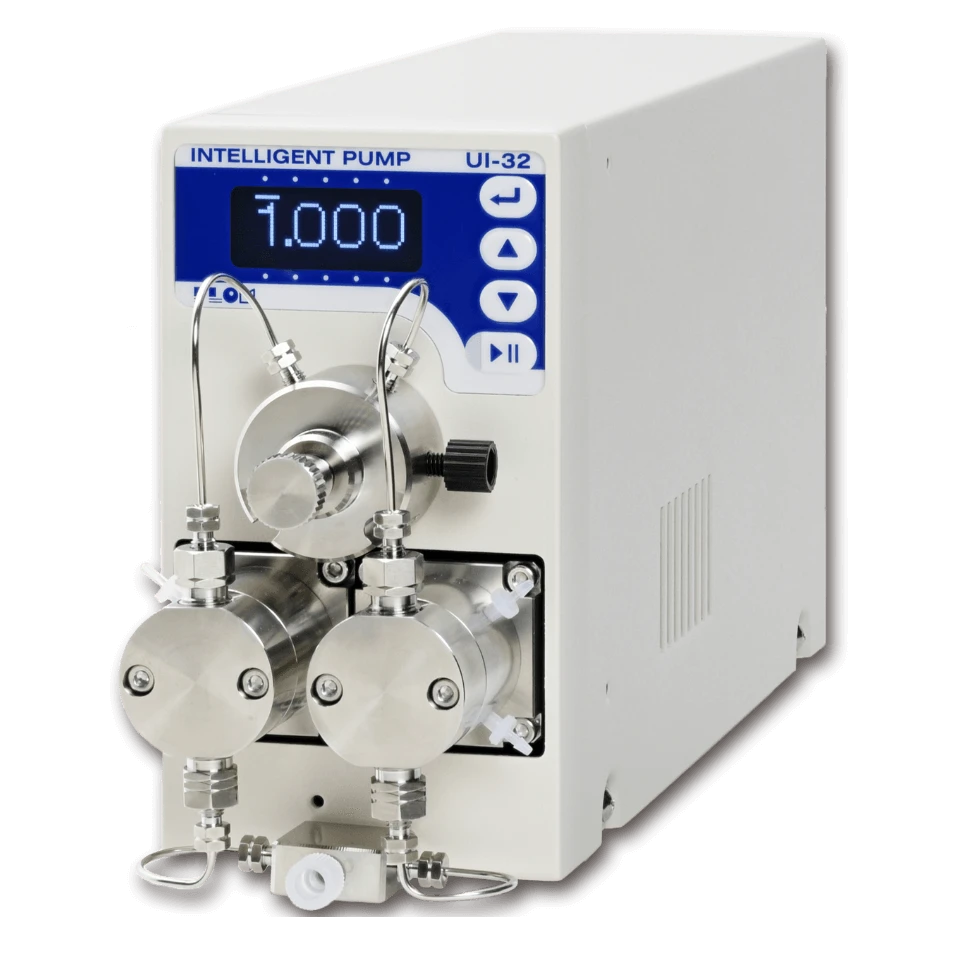

UI-32 Intelligent Pump



The UI-32 Intelligent Pump is a compact, high-precision pump designed for flow chemistry. Featuring a dual plunger system with two independently controlled linear drives, it ensures a stable, ultra-low pulsation flow. Real-time backpressure management is facilitated by a built-in pressure sensor connected to the BP-11 Auto Backpressure Regulator.

Suitable for various developmental scale flow chemistry applications, it operates in two flow ranges: low (0.001–9.999 mL/min) and medium (0.01–99.99 mL/min). The pump supports a wide range of liquid phases with materials like stainless steel, polyether ether ketone (PEEK), and polychlorotrifluoroethylene (PCTFE).

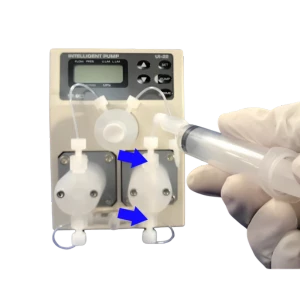

Compact Size

Measuring just 144 x 79 x 240 mm (5.67 x 3.11 x 9.45"), the UI-22 is incredibly compact, up to a third of the size of some competitors.



High-Performance Linear Drives

The UI-32's plunger pumps are powered by independently controlled linear drives. The linear drives eliminate the pulsation inherent in cam designs, resulting in much smoother pump strokes.

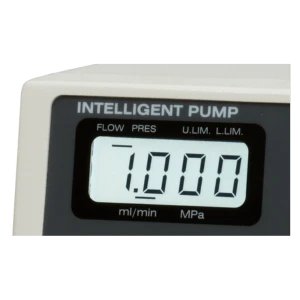

Easy Set-up

The UI-32 is designed for easy use and can be quickly set up by users with little to no technical assistance.




Selection of flow path materials


UI-32-110S


Stainless Steel

UI-32-110S
UI-32-410S

UI-32-110P


Carbon-reinforced PEEK

UI-32-110P
UI-32-410P

UI-22-110D


PCTFE

UI-22-110D
UI-22-410D



UI-32 Intelligent Pump Specifications


Part Number UI-32-110S UI-32-110P UI-32-410S UI-32-410P
 UI-22-110D
 UI-22-410D
Drive Linear drive
Pump head material SS PEEK SS PEEK PCTFE PCTFE
Max pressure *1 40 MPa
(5800 psi)		 20 MPa
(2900 psi)		 5 MPa
(725 psi)		 5 MPa
(725 psi)		 2 MPa
(290 psi)		 2 MPa
(290 psi)
Flow rate range 0.001 - 9.999 mL/Min 0.01 - 99.99 mL/Min 0.001 - 9.999 mL/Min 0.01 - 99.99 mL/Min
Flow per stroke 80 μL 718 μL 80 μL 708 μL
Plunger stroke 10 mm 10 mm
Flow accuracy <0.3% RSD (within 0.1 - 5 mL/Min) <0.3% RSD (within 0.1 - 5 mL/Min)
Features Consistent volume flow, Consistent pressure flow, Timer flow Active pulsation reduction, Flow volume calibration, Upper and lower pressure limiter
Flow accuracy <0.3% RSD (within 0.1 - 5 mL/Min) <5%
Wetted material SS type: SS, Sapphire, Ruby, PCTFE, PFA, UHMW-PE, Elgiloy, PEEK PEEK type: PEEK, Sapphire, Ruby, PCTFE, PFA, UHMW-PE, FFKM SS type: SS, Sapphire, Ruby, PCTFE, PFA, UHMW-PE, Elgiloy, PEEK PEEK type: PEEK, Sapphire, Ruby, PCTFE, PFA, UHMW-PE, FFKM
Remote cotrol Input: START/STOP, Output: ERROR/FUNC (Either one of READY/END/RUN) DC1-5V Input: Flow rate setup, DC1-5V Output: Pressure signal Input: Pump On/Off, Output: Error signal
Communication RS232C, RS485 (between FLOM devices) RS232C, RS485 (between FLOM devices)
Dimensions 144(H) x 79(W) x 240(D) mm 144(H) x 105(W) x 240(D) mm
Weight Approx.
3.8 Kg		 Approx.
3.0 Kg		 Approx.
3.8 Kg		 Approx.
3.0 Kg		 Approx.
5.6 Kg

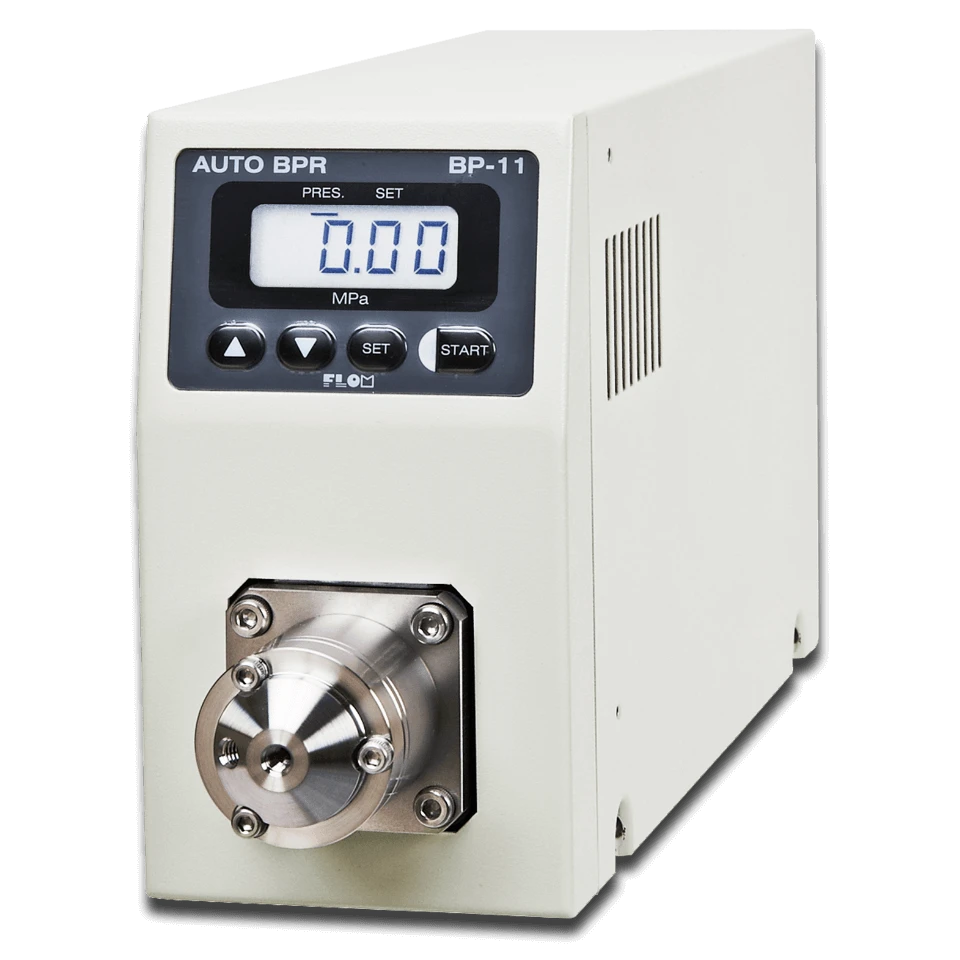

BP-11 Auto Backpressure Regulator



The BP-11 Auto Backpressure Regulator is an adjustable pressure regulator designed for liquid systems. It connects to the UI-22 Intelligent Pump to automatically maintain system pressure at a preset value. Utilizing a membrane powered by high-precision linear drives, it applies mechanical force to ensure superior response to pressure fluctuations from a post-reactor position.



Real-time Pressure Feedback

The BP-11 Auto Backpressure Regulator connects to the UI-22 Intelligent Pump's pressure sensor, providing real-time system pressure feedback.

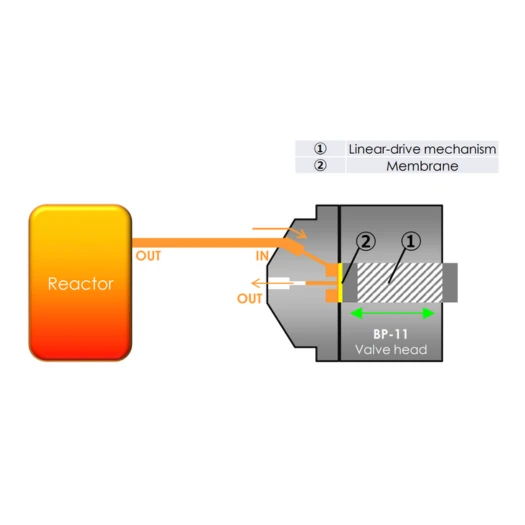

Mechanical Force Regulation

Mechanical force is applied through a membrane powered by a linear drive, positioned after the flow reactor to maximize pressure control over the flow path.

BP-11 Auto Backpressure Regulator Specifications


Part Number BP-11D
Wetted material PCTFE、PFA
Fluid path diameter 0.6 mm
Pressure range 0.10～5.00 MPa (14.5～725 psi)
Flow rate 0.1～100 mL/min
Control accuracy
 ± 0.1 MPa (±14.5 psi)
Pressure signal Uses pressure signal from UI-22 [DC1-5V]
Remote control
 Input signal: Start/Stop,
Output signal: FUNC RS232C, RS485 (between FLOM devices)
Dimensions
 144(W) x 79(W) x 240(D) mm excluding protuberances
Weight
 Approx 2.7 kg
