A new cam-drive mechanism provides stable flow up to the maximum setup flow rate.
Low pulsation continuous flow can be provided with using a pulsation damper.

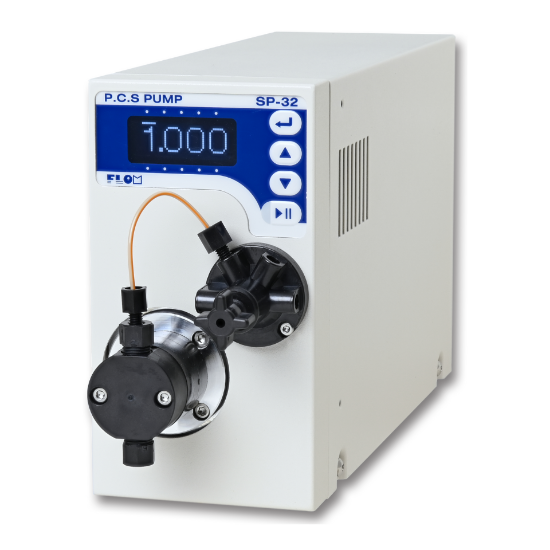

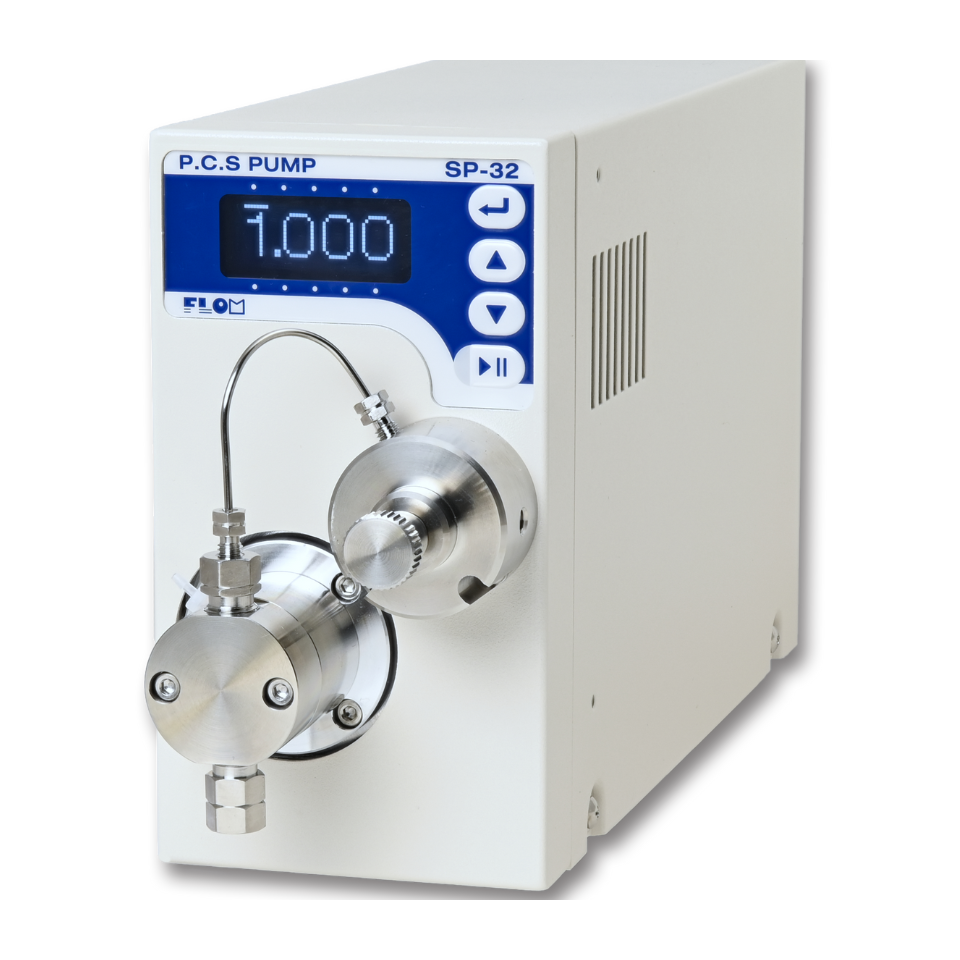

Pump head material is available to choose from Stainless Steel and PEEK specifications.
Instead of using dual plunger pump, we would like to recommend a combination of SP single plunger pump and pulsation damper. The pulsation damper is available to choose from 3 types as low, medium and high pressure.
By setting a function of Quick Plunger Motion of SP pump and adding a pulsation damper, low pulsation continuous flow can be provided.
Solvent: Methanol, Flow rate: 1.0 mL/Min., Backpressure: 10 MPa (1450 psi)
| Product Name | PCS Pump (with pressure sensor) | ||||||||
| Product Number | SP-32-12S | SP-32-12P | SP-32-13S | SP-32-13P | SP-32-42S | SP-32-42P | SP-32-43S | SP-32-43P | |
| Pumphead Material | SUS316 | PEEK | SUS316 | PEEK | SUS316 | PEEK | SUS316 | PEEK | |
| Max Pressure*¹ | 35MPa (5075psi) | 20MPa (2900psi) | 25MPa (3625psi) | 20MPa (2900psi) | 5MPa (725psi) | 5MPa (725psi) | 2MPa (290psi) | 2MPa (290psi) | |
| Flow Rate Range | 0.001 ~ 2.500 mL/min | 0.001 ~ 5.000 mL/min | 0.01 ~ 25.00 mL/min | 0.01 ~ 50.00 mL/min | |||||
| Flow Per Stroke | 16 μL | 32 μL | 144 μL | 287 μL | |||||
| Plunger Stroke | 2 mm | 4 mm | 2 mm | 4 mm | |||||
| Flow Repeatability*² | < 0.5 % RSD (at 0.100 mL/min or greater) | < 0.5 % RSD (at 1.00 mL/min or greater | |||||||
| Flow Accuracy*² | ± 2.0 % or ± 2 μL/min or less, whichever is greater | ± 2.0 % or ± 20 μL/min or less, whichever is greater | |||||||
| Features | Quick Plunger Motion , Continuous Flow , Timer Mode , Consistent Pressure Mode , Upper / Lower Pressure Limiters | ||||||||
| Pressure Accuracy | ± 0.2 MPa (± 29 psi) | ||||||||
| Wetted Materials | SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , ELGIROY®*³ , PEEK , SUS PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK |
||||||||
| Remote Control | Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V input : Flow rate setup , DC1-5V output : Pressure signal | ||||||||
| Communication | RS232C , RS485 (between FLOM devices) | ||||||||
| Dimensions | 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances | ||||||||
| Weight | Approx. 2.8 kg | ||||||||
| Power | DC24V , Max 30 W (AC adapter standard) | ||||||||
| Order Code | SSP-P3514 | SSP-P3513 | SSP-P3517 | SSP-P351 | SSP-P3520 | SSP-P3519 | SSP-P3523 | SSP-P3522 | |
| *1: Maximum pressure is only sustained intermittently, this does not mean maximum pressure under continuous use. *2: Test data generated under FLOM’s standard test conditions. *3: ELGILOY® is a registered trademark of the Elgiroy Specialty Metals. |
|||||||||
