GLS Detection Tube

Quick and accurate measurement of environmental gases anywhere

GLS Gas Detection Tubes detect trace environmental gases and provide measurements of gas concentrations within minutes from any site. A portable, handheld sampling pump conveniently delivers sample gas allowing GLS Gas Detection Tubes to be easily used wherever and whenever gas detection is required. A wide selection of tubes allows for the detection of up to 250 different target gases.

FEATURES

  • High accuracy (ppm and <1% scale) measurement of trace gas concentrations
  • Portable, compact pump system for handheld operation and carry
  • Direct reading of results straight from the detector tubes
  • Multiple gas concentrations ranges available
  • Wide selection of gas detection tubes for up to 250 different types of target gases

Overview

The GLS Gas Detection Tube System is comprised of GLS Detection Tubes and an Air Sampling Pump (AP-20). Each detector tube is formulated with high purity reagents that absorb and react with the target gas being measured. A colorimetric stain is created which is proportional in length to the target gas concentration. The concentration is read directly off the measurement scale on each tube for most applications.

Using the AP-20 Air Sampling Pump (sold separately) sample gas is delivered to detector tubes in uniform increments of 50mL for a half-stroke and 100mL for a full stroke. All gas detector tubes are calibrated for use with n half or full strokes so that gas sampling is managed by stroke count.

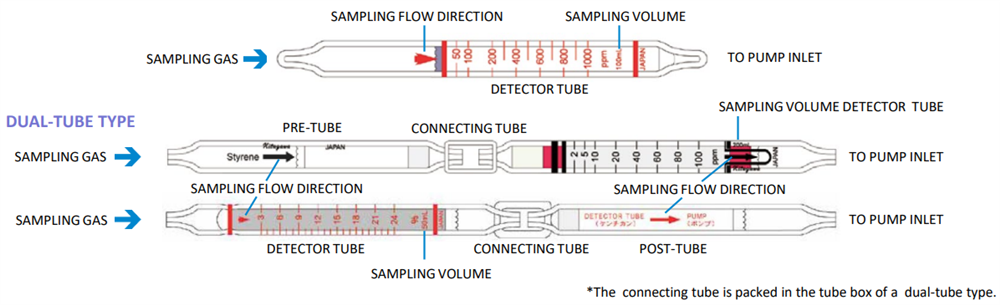

Gas Detection Tube components

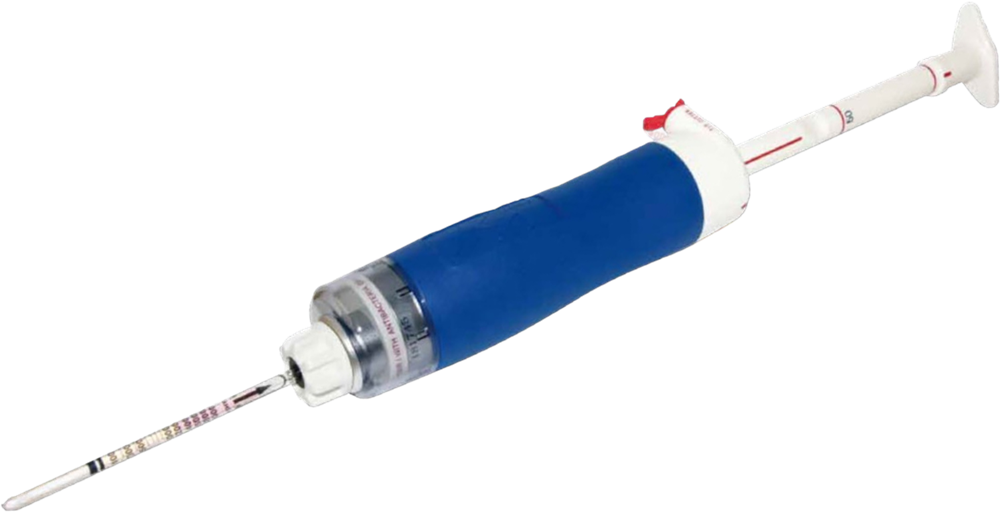

AP-20 Air Sampling Pump


GLS Detection Tube System Operation

Below is the basic operating flow of the GLS Detection Tube System:

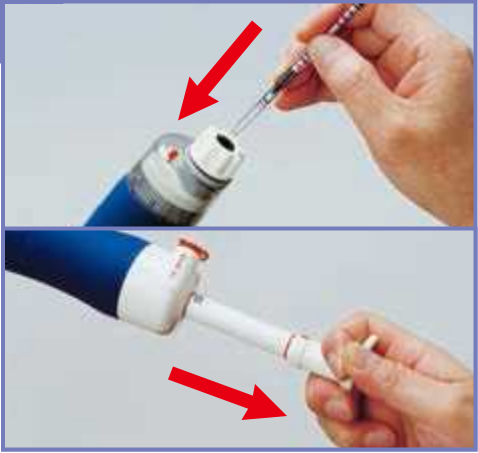

1. Do preliminary pump check

Gas Aspirating Pump Step 1

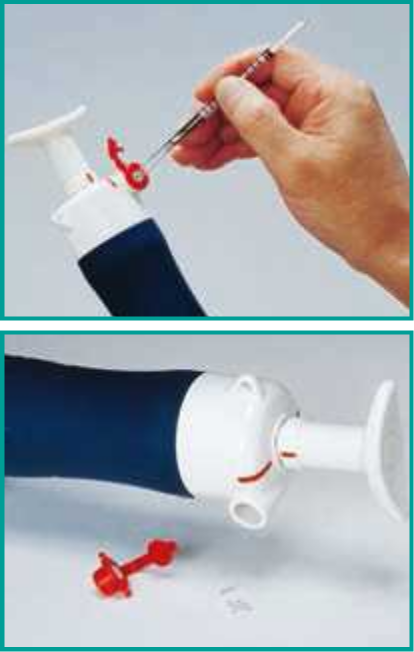

2. Cut both ends of the gas detector tube

Gas Aspirating Pump Step 2

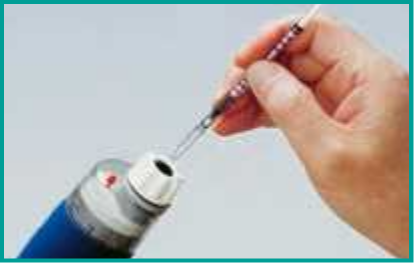

3. Connect the gas detector tube to the aspirating pump

Gas Aspirating Pump Step 3

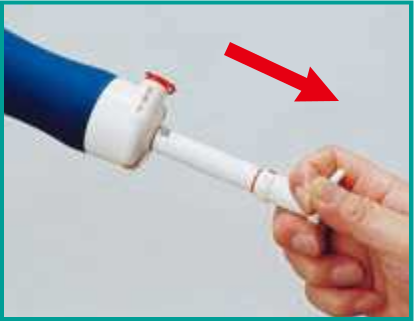

4. Pull the handle

Gas Aspirating Pump Step 4

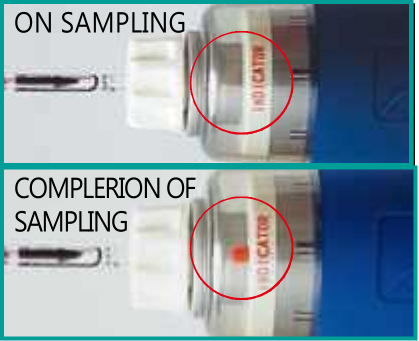

5. Draw the sample gas

Gas Aspirating Pump Step 5

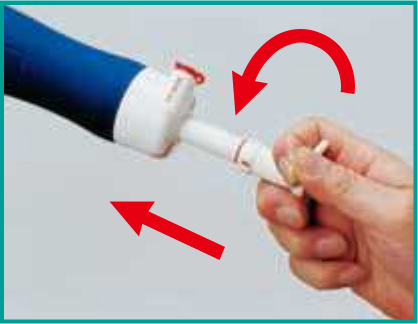

6. Return the handle and read concentration off the gas concentration tube

Gas Aspirating Pump Step 6


Kitagawa logo

Manufactured by Kitagawa, a pioneer in gas detector tubes. Starting with the introduction of H2S tubes for quality control in 1947, Kitagawa has continued to lead in the field of gas analysis.

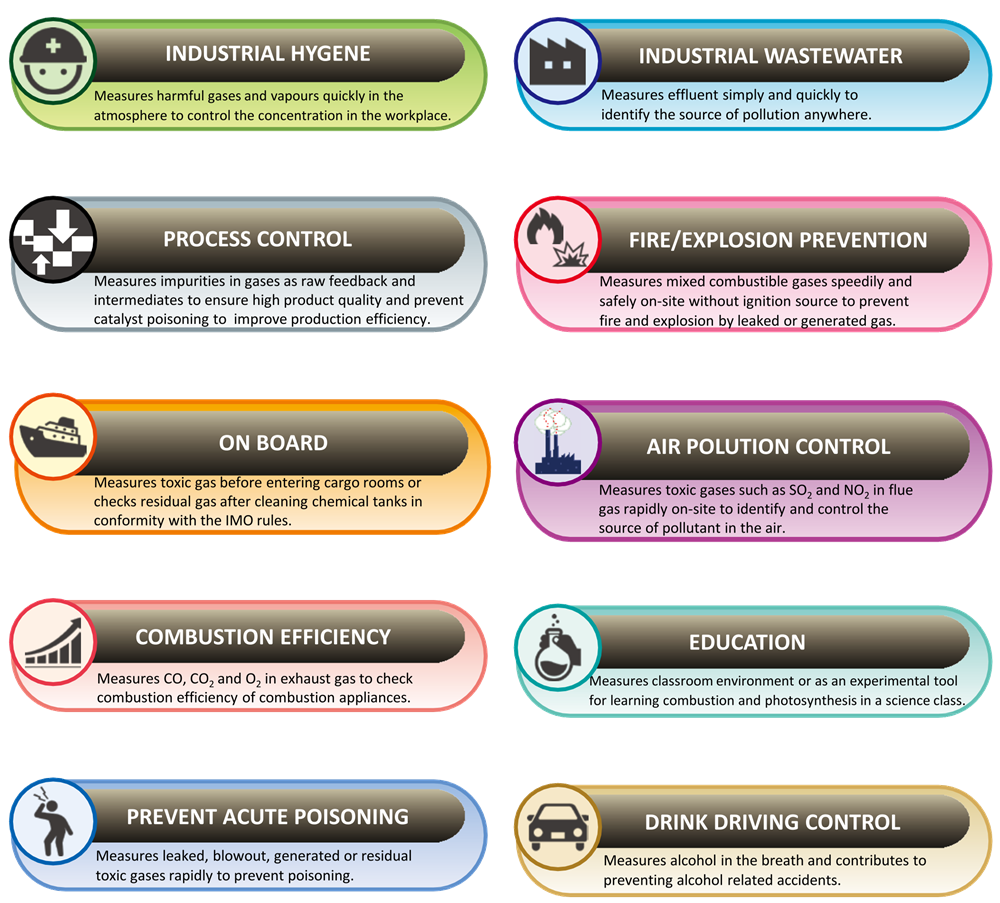

GLS Detection Tube Applications

GLS Detection Tube Applications

Products

Filter products by these criteria:



256 Items
Carbon monoxide (CO)
5-1,000 ppm
Yellow to Dark brown
$88.00
Acetylene (HCCH)
50-1,000 ppm
Pale Yellow to Brownish blue
$88.00
Acetone (CH3COCH3)
0.1-5.0%
Orange to Dark brown
$88.00
Acetone (CH3COCH3)
0.01-4.0%
Yellow to Pink
$88.00
Acetone (CH3COCH3)
20-5,000 ppm
Yellow to Dark brown
$88.00
Sulfur dioxide (SO2)
0.1-3.0%
Yellow to Blue
$88.00
Sulfur dioxide (SO2)
0.02-0.3%
White to Brown
$88.00
Sulfur dioxide (SO2)
20-300 ppm
Purple to Yellow
$88.00
Sulfur dioxide (SO2)
1-60 ppm
Pink to Yellow
$88.00
Sulfur dioxide (SO2)
0.25-10 ppm
Pink to Yellow
$88.00
Sulfur dioxide (SO2)
0.02-0.3%
White to Orange
$88.00
Sulfur dioxide in carbon dioxide (SO2)
0.1-25 ppm
Blue purple to White
$100.00
Ethanol (C2H5OH)
0.05-5.0%
Yellowish orange to Light green
$88.00
Isopropyl alcohol (CH3CH(OH)CH3)
20-300 ppm
CH3CH(OH)CH3: Pink to White or Pale Pink
$88.00
Ethanol (C2H5OH)
20-1,000 ppm
Yellow to Brown and Pale blue (read the maximum point of brown layer)
$100.00
Ammonia (NH3)
0.5-10%
Pink to Gray or Yellow
$88.00
Ammonia (NH3)
50-900 ppm
Pale purple to Pale yellow
$88.00
Ammonia (NH3)
5-260 ppm
Pale purple to Pale yellow
$88.00
Ammonia (NH3)
0.2-20 ppm
Pale purple to Pale yellow
$88.00
Ammonia (NH3)
1-200 ppm
Pale purple to Pale yellow
$88.00
Ammonia (NH3)
0.5-30%
Pink to Blue/Brownish Green
$88.00
Ammonia (NH3)
0.1-1.0%
Pale purple to Pale yellow
$88.00
Carbon monoxide (CO)
10-1,000 ppm
Pale yellow to Green to Blue
$88.00
Carbon monoxide (CO)
10-1,000 ppm
Pale yellow to Green to Blue
$88.00
Carbon monoxide (CO)
5-2,000 ppm
Yellow to Dark brown
$88.00
Carbon monoxide (CO)
1-50 ppm
Orange to Reddish purple
$88.00
Carbon monoxide (CO)
0.1-2.0%
White to Dark brown
$88.00
Carbon monoxide (CO)
30-500 ppm
Yellow to Dark brown
$88.00
Carbon monoxide (CO)
0.1-20%
White to Dark brown
$100.00
Ethyl ether ((C2H5)2O)
0.04-1.4%
Orange to Dark green
$128.00
Ethyl ether ((C2H5)2O)
20-400 ppm
Pale yellow to Pale blue
$100.00
Ethylene (CH2CH2)
0.1-100 ppm
Pale yellow to Blue
$88.00
Ethylene (CH2CH2)
20-1,200 ppm
Yellow to Blue
$88.00
Ethylene (CH2CH2)
1-200 ppm
Yellow to Blue
$88.00
Chlorine (Cl2)
1-40 ppm
White to Yellowish orange
$88.00
Chlorine (Cl2)
0.1-10.0 ppm
White to Pale orange
$88.00
Chlorine (Cl2)
0.05-2 ppm
White to Pale purple
$100.00
Gasoline
0.01-0.6%
Orange to Dark green
$88.00
Ethyl acetate (CH3CO2C2H5)
0.1-5.0%
Orange to Brownish green
$88.00
Ethyl acetate (CH3CO2C2H5)
10-1,000 ppm
Yellow to Brown
$100.00
Hydrogen cyanide (HCN)
0.01-3.0%
Yellow to Brownish red
$88.00
Hydrogen cyanide (HCN)
0.5-230 ppm
Yellow to Red
$88.00
Hydrogen cyanide (HCN)
0.3-8 ppm
Yellow to Red
$88.00
n-Hexane (CH3(CH2)4CH3)
0.05-1.32%
Orange to Dark green
$88.00
n-Hexane (CH3(CH2)4CH3)
50-1,400 ppm
Orange to Yellowish green
$88.00
n-Hexane (CH3(CH2)4CH3)
4-800 ppm
Yellow to Pale blue
$88.00
Bromine (Br2)
1-20 ppm
White to Orange
$88.00
Cyclohexane (C6H12)
0.01-0.6%
Orange to Dark green
$88.00
Chlorine dioxide (ClO2)
1-20 ppm
White to Reddish orange
$88.00
Nitrogen dioxide (NO2)
20-1,000 ppm
White to Green
$88.00

Applications

There are application notes for GLS Detection Tube.
