| Item | Contents | ||||
|---|---|---|---|---|---|

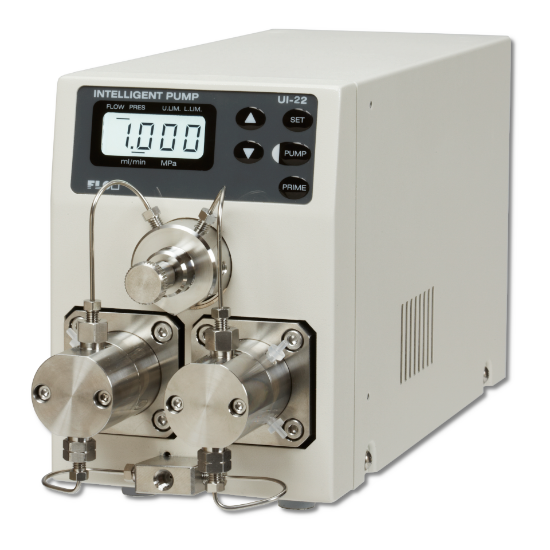

| Product Name | Intelligent Pump | ||||
| Part Number | UI-22-110S | ||||
| Pumphead material | Stainless Steel | ||||
| Max pressure *1 | 35 MPa (5075 psi) | ||||
| Flow rate range | 0.001～9.999 mL/min | ||||
| Flow per stroke | 80 μL | ||||
| Plunger stroke | 10 mm | ||||
| Flow accuracy | <0.3% | ||||
| Features | Active pulse reduction, Flow volume calibration, Upper and lower pressure limiter | ||||
| Pressure accuracy | <5% | ||||
| Wetted material | Stainless Steel type: SS, Sapphire, Ruby, PTFE, PCTFE | ||||
| Remote control | Input: PUMP On/Off・Output: Error signal | ||||
| Communication | RS232C | ||||
| Dimensions | 144(H) x 105(W) x 240(D)mm | ||||
| Weight | Approx 5.6kg | ||||
| Order Code | SLP-P509 | ||||
*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
Note: The specifications and product design may change without prior notice.
Features
- Pulses reduced to absolute minimum making low flow rate pumping possible
- Bubble problems greatly reduced
- Long life plunger seal
- Upper and lower pressure limiters
- Space-saving compact design
- Control with RS-232C protocol
- Choose Stainless steel, PEEK, or PCTFE to match the solvent used
Linear Drive Design
Suction (solvent aspiration)
The UI-22 pump uses a linear driver mechanism in which the plunger moves in line with the motor’s axis. Because aspirated air can be easily discharged, and with the seal suffering almost no wear, tiny leaks from the seal are eliminated, which means that even highly volatile solvents can be efficiently pumped.
