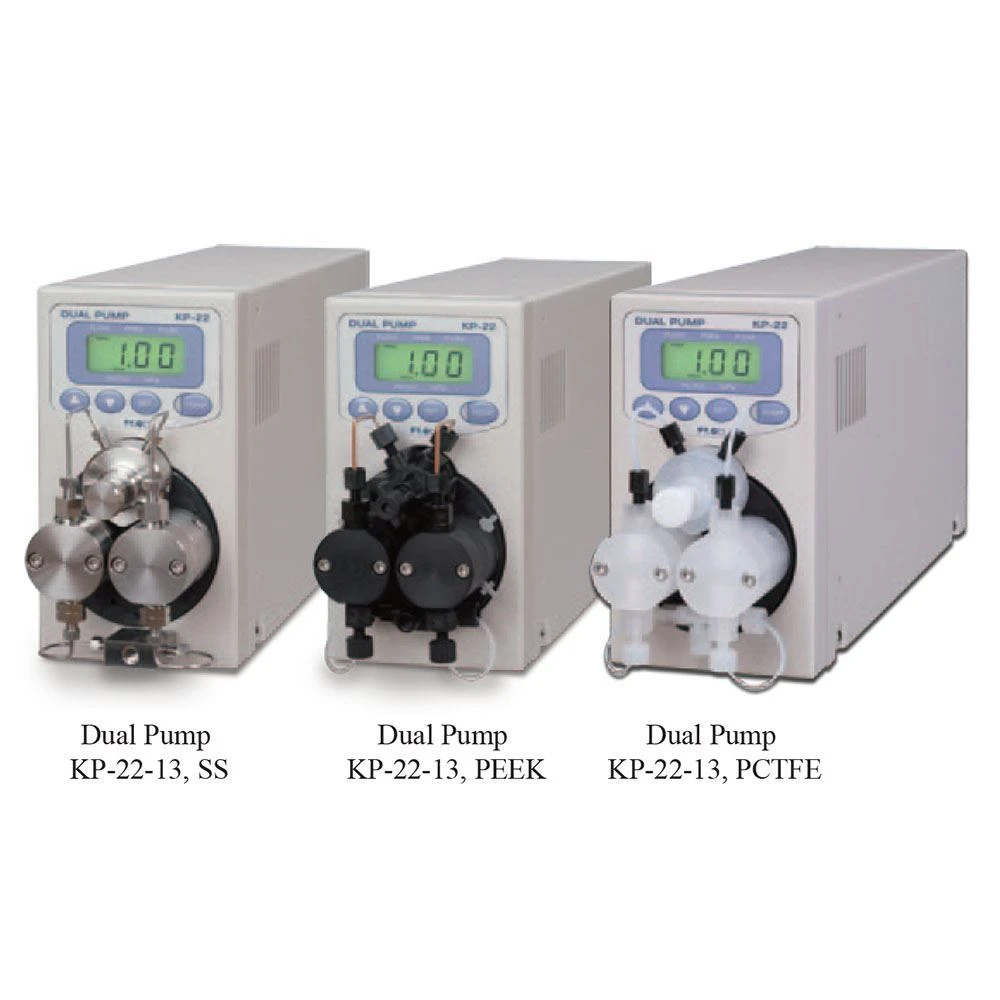

Medium to High Pressure Dual Pump with Pressure Sensor-Stailess steel, 10 mL/min., 25 Mpa

Features

• Cam-driven design with high flow accuracy and low pulsing
• 6 separate configurations of flow range/pumphead material
• High precision and stable flow volumes
• Equipped with pulse control for reduced fluctuations in pressure
• Real-time display of pressure
• Metered flow mode allows setting to desired flow volumes
• Upper and lower pressure limiter
• RS-232C interface for computer control
• Variety of seals to choose from depending on solvent
• Choose from 3 different models to match desired flow ranges
• Choose from 3 different pump head materials

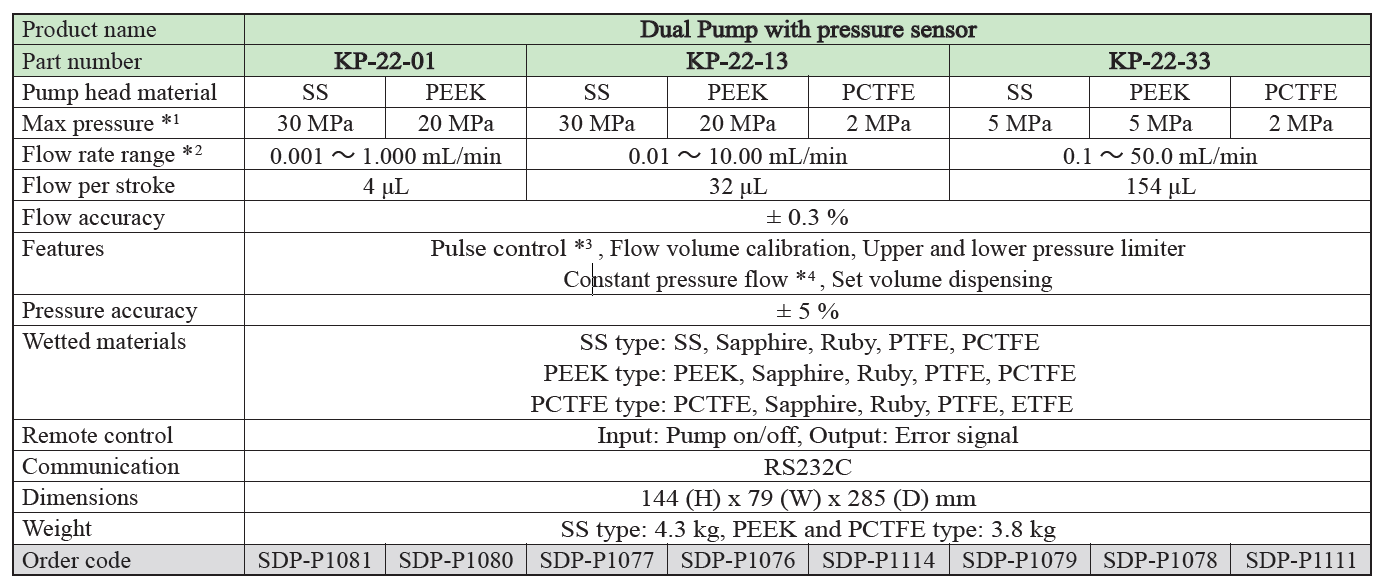

*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
*2: The unit cannot run continuously at maximum flow rate.
*3: Pulse control is activated below the flow pressure of 5􀀁MPa.
*4: Constant pressure flow mode adjusts the flow rate in real time to stabilize the pressure at the set range.
Note: The specifications and product design may change without prior notice.
