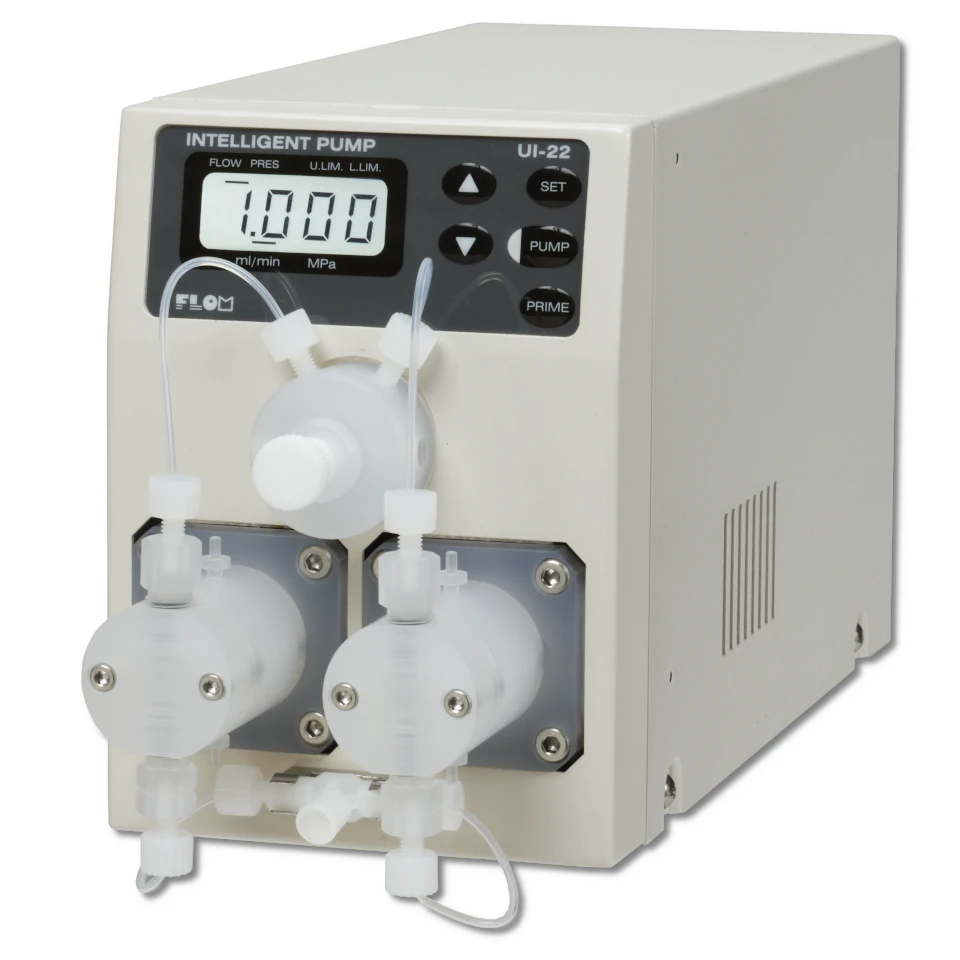

Intelligent pump UI-22-110D - PCTFE, 2 MPa (290 psi)

SKU: UI-22-110D
Brand: FLOM
Intelligent Pump version with PCTFE pumphead material and Max pressure of 2 MPa (290 psi)
$8,350.00
+ -

Specifications

Intelligent pump UI-22-110D - PCTFE, 2 MPa (290 psi) SKU: UI-22-110D

Overview

ItemContents
Product NameIntelligent Pump
Part NumberUI-22-110D
Pumphead materialPCTFE
Max pressure *12 MPa (290 psi)
Flow rate range0.001~9.999 mL/min
Flow per stroke80 μL
Plunger stroke10 mm
Flow accuracy<0.3%
FeaturesActive pulse reduction, Flow volume calibration, Upper and lower pressure limiter
Pressure accuracy<5%
Wetted materialStainless Steel type: SS, Sapphire, Ruby, PTFE, PCTFE
Remote controlInput: PUMP On/Off・Output: Error signal
CommunicationRS232C
Dimensions144(H) x 105(W) x 240(D)mm
WeightApprox 5.6kg
Order CodeSLP-P517

*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
Note: The specifications and product design may change without prior notice.



Features

  • Pulses reduced to absolute minimum making low flow rate pumping possible
  • Bubble problems greatly reduced
  • Long life plunger seal
  • Upper and lower pressure limiters
  • Space-saving compact design
  • Control with RS-232C protocol
  • Choose Stainless steel, PEEK, or PCTFE to match the solvent used

Linear Drive Design
Suction (solvent aspiration)

The UI-22 pump uses a linear driver mechanism in which the plunger moves in line with the motor’s axis. Because aspirated air can be easily discharged, and with the seal suffering almost no wear, tiny leaks from the seal are eliminated, which means that even highly volatile solvents can be efficiently pumped.



Video

Applications

There are application notes for Intelligent pump UI-22-110D - PCTFE, 2 MPa (290 psi).
