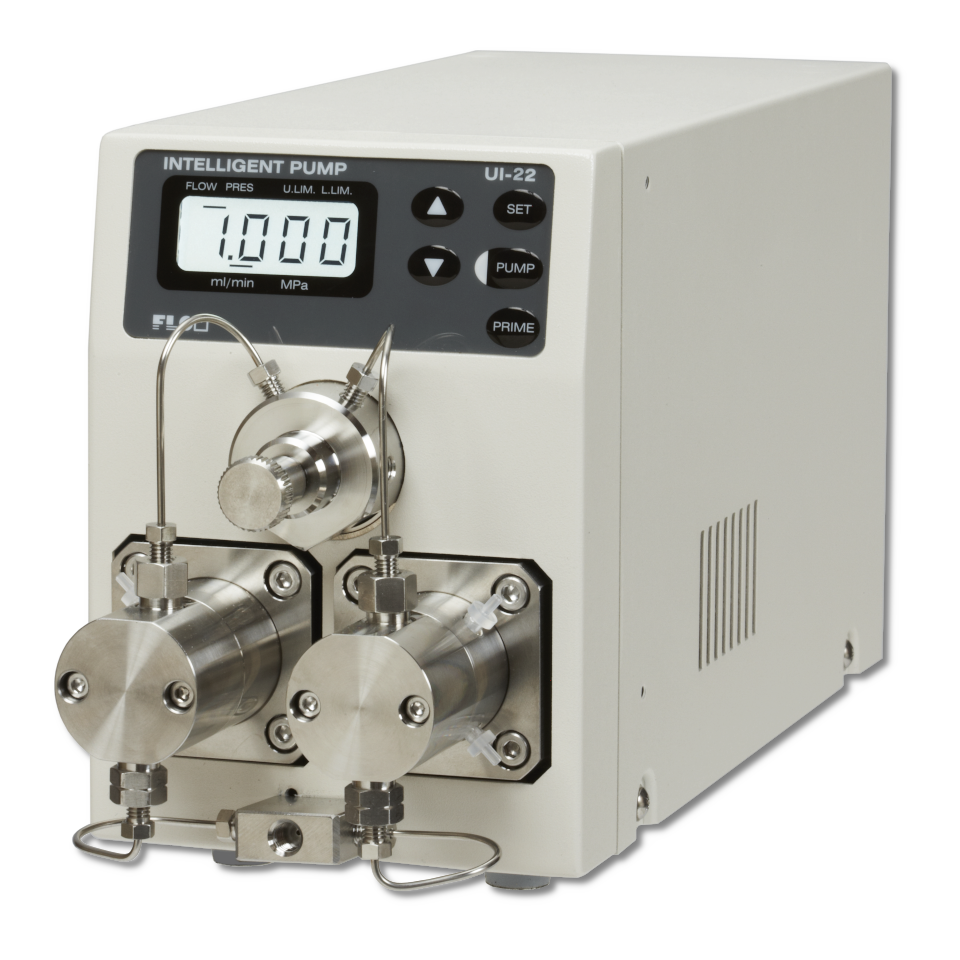

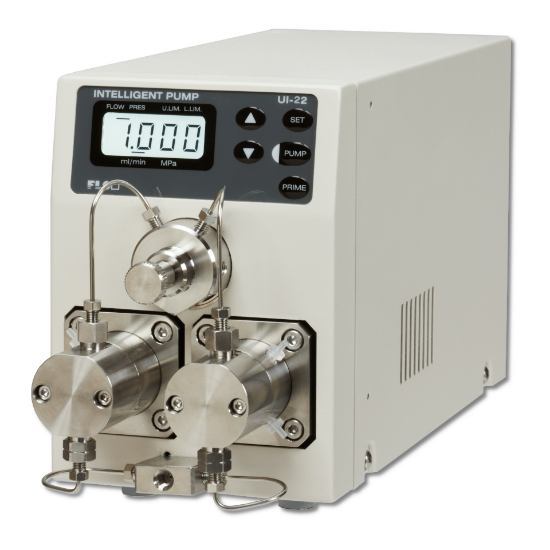

Intelligent pump UI-22-110S - Stainless Steel, 35 MPa (5075 psi)

SKU: UI-22-110S
Brand: FLOM
Intelligent Pump version with Stainless Steel pumphead material and Max pressure of 35 MPa (5075 psi)
$5,800.00
+ -

Specifications

Intelligent pump UI-22-110S - Stainless Steel, 35 MPa (5075 psi) SKU: UI-22-110S

Overview

Item Contents
Product Name Intelligent Pump
Part Number UI-22-110S
Pumphead material Stainless Steel
Max pressure *1 35 MPa (5075 psi)
Flow rate range 0.001~9.999 mL/min
Flow per stroke 80 μL
Plunger stroke 10 mm
Flow accuracy <0.3%
Features Active pulse reduction, Flow volume calibration, Upper and lower pressure limiter
Pressure accuracy <5%
Wetted material Stainless Steel type: SS, Sapphire, Ruby, PTFE, PCTFE
Remote control Input: PUMP On/Off・Output: Error signal
Communication RS232C
Dimensions 144(H) x 105(W) x 240(D)mm
Weight Approx 5.6kg
Order Code SLP-P509

*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
Note: The specifications and product design may change without prior notice.



Features

  • Pulses reduced to absolute minimum making low flow rate pumping possible
  • Bubble problems greatly reduced
  • Long life plunger seal
  • Upper and lower pressure limiters
  • Space-saving compact design
  • Control with RS-232C protocol
  • Choose Stainless steel, PEEK, or PCTFE to match the solvent used

Linear Drive Design
Suction (solvent aspiration)

The UI-22 pump uses a linear driver mechanism in which the plunger moves in line with the motor’s axis. Because aspirated air can be easily discharged, and with the seal suffering almost no wear, tiny leaks from the seal are eliminated, which means that even highly volatile solvents can be efficiently pumped.



Video

Applications

There are application notes for Intelligent pump UI-22-110S - Stainless Steel, 35 MPa (5075 psi).
