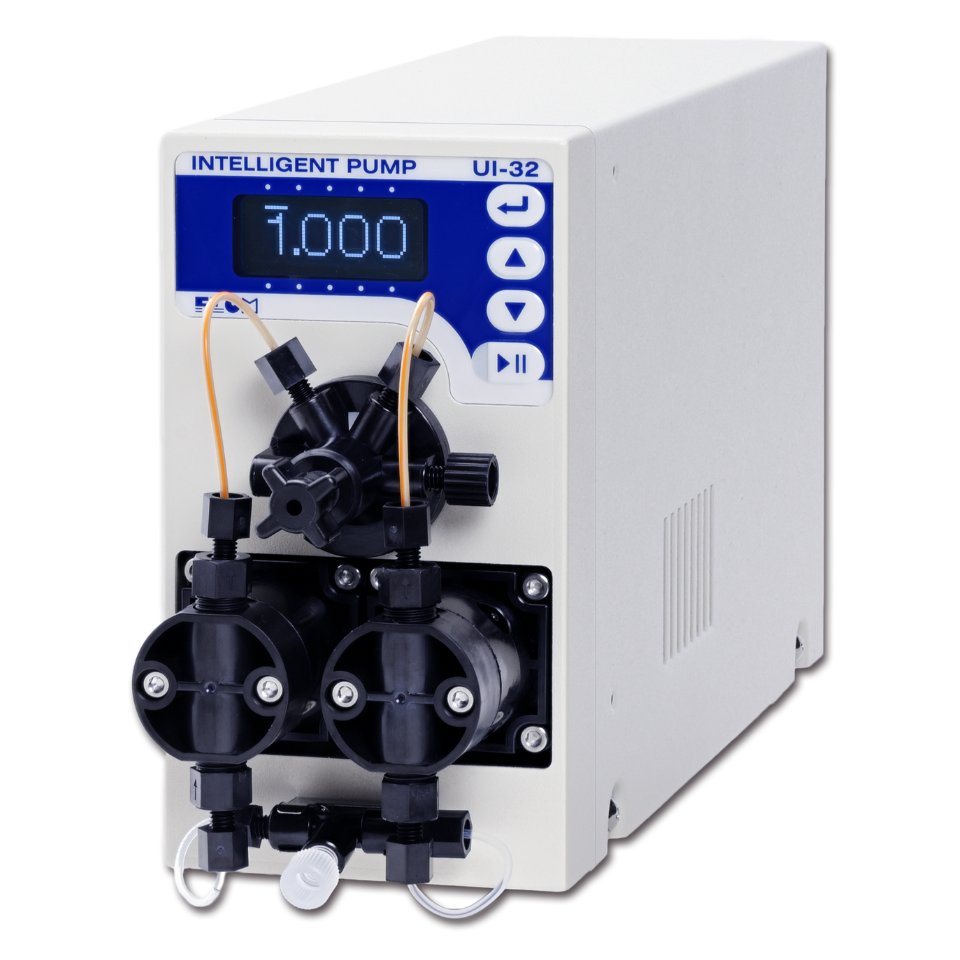

Item # UI-32-410P - Intelligent Pump, PEEK, 100 mL/min, 5 MPa (725 psi)
Intelligent Pump version with PEEK pumphead material and Max pressure of 5 MPa (725 psi)
Specifications
- Flow accuracy: ± 2.0 % or ± 20 μL/min or less, whichever is greater (at 50 mL/min or the lower)
- Communication: RS232C, RS485 (between FLOM devices)
- Weight: Approx. 3.0 kg
- Flow Repeatability: < 0.3 % (0.1 - 5.0 mL/min)
- Flow mode: Continuous flow mode, Consistent pressure flow mode, Timer flow mode
- Safety Function: Upper / lower pressure limiters
- Environment Temperature: 5 - 40 ℃ , 20 - 80 % RH (Non-condensing)
- Pumphead material: PEEK
- Flow rate range: 0.01 - 99.99 mL/min
- Flow per stroke: 718 μL
- Plunger stroke: 10 mm
- Pressure accuracy: ± 0.2 MPa (± 29 psi)
- Remote control: Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V input : Flow rate setup , DC1-5V Output : Pressure signal
- Dimensions: 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances
- Power: AC100 - 240 V (50/60 Hz) MAX 80 VA
- Wetted materials: Sapphire, Ruby, PCTFE, PFA, UHMW-PE, FFKM, PEEK, ETFE
- Max pressure: 5 MPa (725 psi)
GL Sciences: Trusted by Scientists Since 1968
About Intelligent Pump, PEEK, 100 mL/min, 5 MPa (725 psi)
Documents
×
