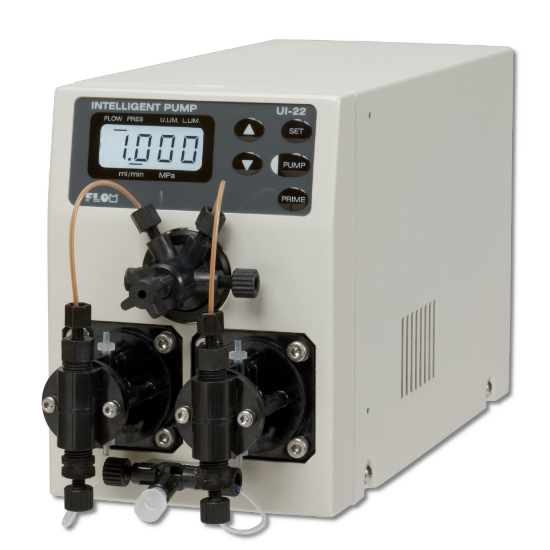

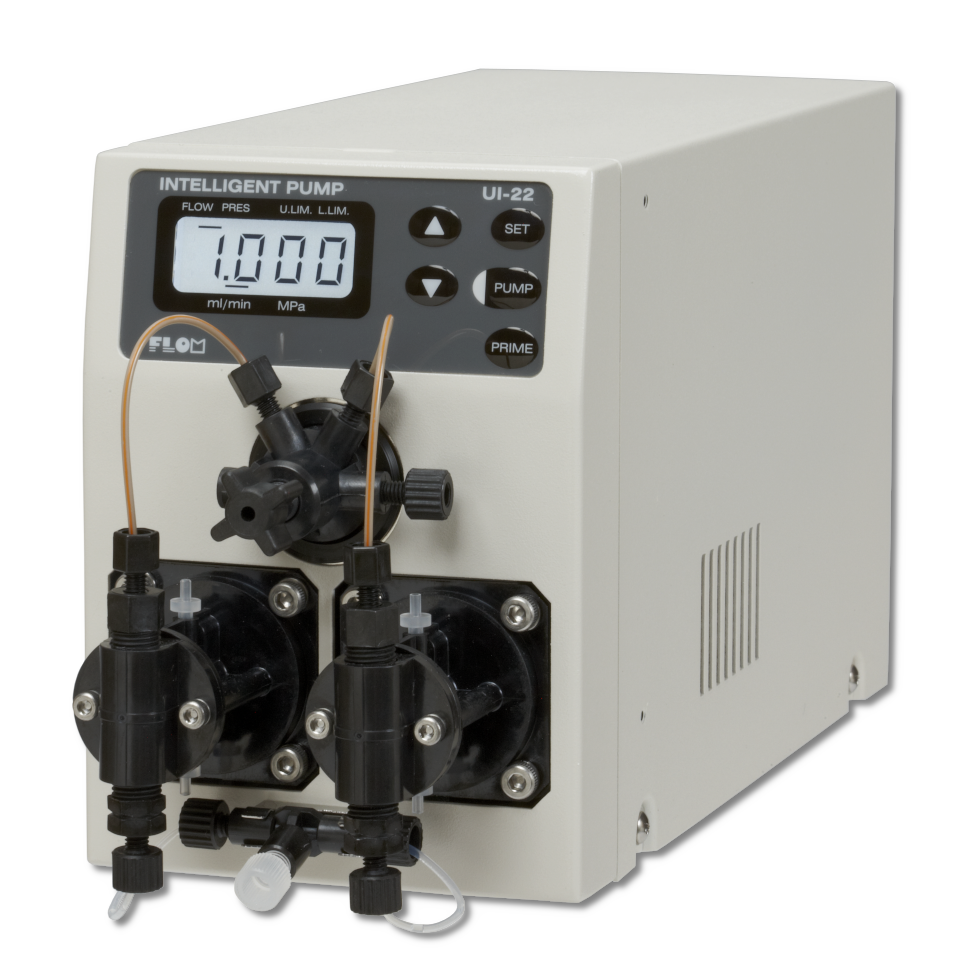

Intelligent pump UI-22-410P - PEEK, 5 MPa (725 psi)

SKU: UI-22-410P
Brand: FLOM
Intelligent Pump version with PEEK pumphead material and Max pressure of 5 MPa (725 psi)
+ -


Intelligent pump UI-22-410P - PEEK, 5 MPa (725 psi) SKU: UI-22-410P


Product NameIntelligent Pump
Part NumberUI-22-410P
Pumphead materialPEEK
Max pressure *15 MPa (725 psi)
Flow rate range0.01~99.99 mL/min
Flow per stroke708 μL
Plunger stroke10 mm
Flow accuracy<0.3%
FeaturesActive pulse reduction, Flow volume calibration, Upper and lower pressure limiter
Pressure accuracy<5%
Wetted materialPEEK type: PEEK, Sapphire, Ruby, PTFE, PCTFE
Remote controlInput: PUMP On/Off・Output: Error signal
Dimensions144(H) x 105(W) x 240(D)mm
WeightApprox 5.6kg
Order CodeSLP-P516

*1: Maximum pressure is only sustained intermittently. Continuous pump operation at maximum pressure cannot be guaranteed.
Note: The specifications and product design may change without prior notice.



  • Pulses reduced to absolute minimum making low flow rate pumping possible
  • Bubble problems greatly reduced
  • Long life plunger seal
  • Upper and lower pressure limiters
  • Space-saving compact design
  • Control with RS-232C protocol
  • Choose Stainless steel, PEEK, or PCTFE to match the solvent used

Linear Drive Design
Suction (solvent aspiration)

The UI-22 pump uses a linear driver mechanism in which the plunger moves in line with the motor’s axis. Because aspirated air can be easily discharged, and with the seal suffering almost no wear, tiny leaks from the seal are eliminated, which means that even highly volatile solvents can be efficiently pumped.




There are application notes for Intelligent pump UI-22-410P - PEEK, 5 MPa (725 psi).
