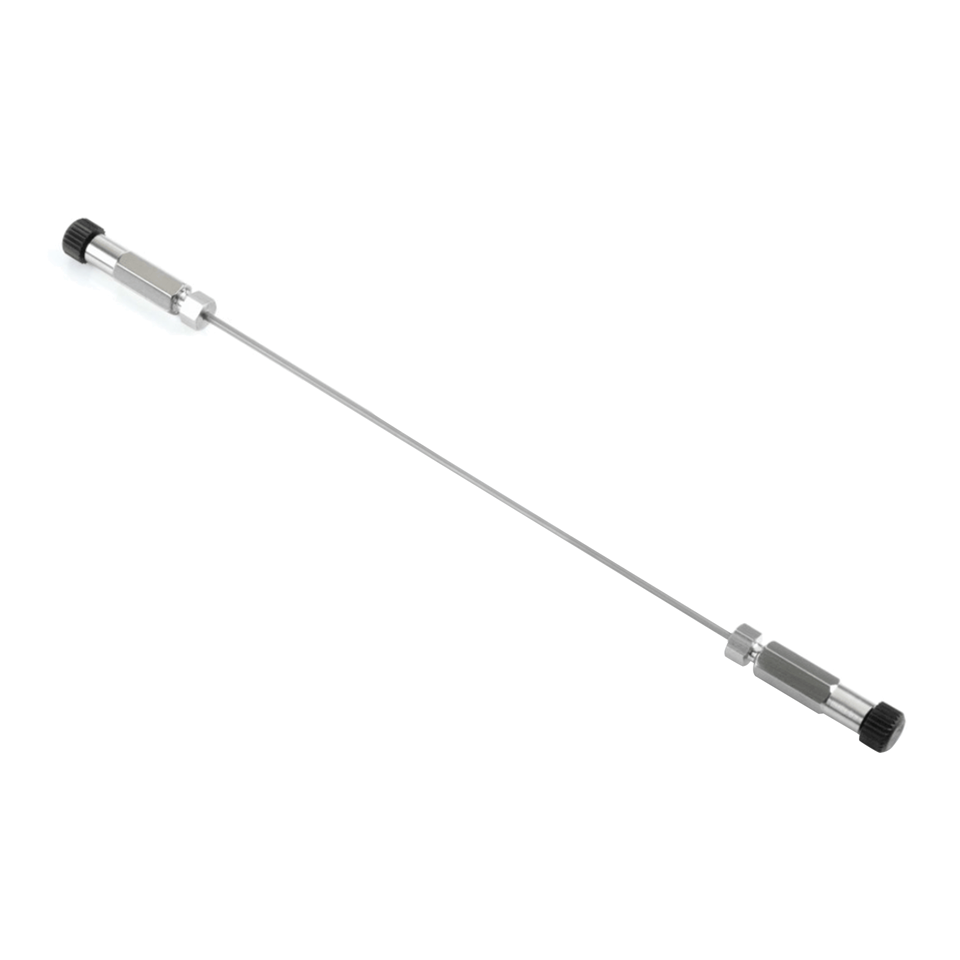

Inertsil Ph-3 Capillary EX-Nano Column, 3 µm, 50 x 0.05 mm

Physical Properties

• Silica : 3 Series High Purity Silica Gel
• Particle Size : 2 μm, 3 μm, 5 μm
• Surface Area : 450 m2/g
• Pore Size : 100 Å (10 nm)
• Pore Volume : 1.05 mL/g
• Functional Group : Phenyl Groups
• End-capping : No
• Carbon Loading : 9.5 %
• USP Code : L11
• pH Range : 2 - 7.5

Just like InertSustain Phenyl, Inertsil Ph-3 has phenyl groups directly bonded to the silica gel which provides pure reverse phase characteristics that are critical to resolving highly polar compounds like acidic and basic pharmaceuticals. The near perfect phenyl phase coverage on this material results in symmetric, narrow peaks for even the most polar compounds while using simple eluents like aqueous acetonitrile or methanol.

Figure 1 : Comparison of Selectivity with Inertsil ODS-3

Figure 2 : Application on Pesticide Detection Test
