GL Sciences: Trusted by Scientists Since 1968

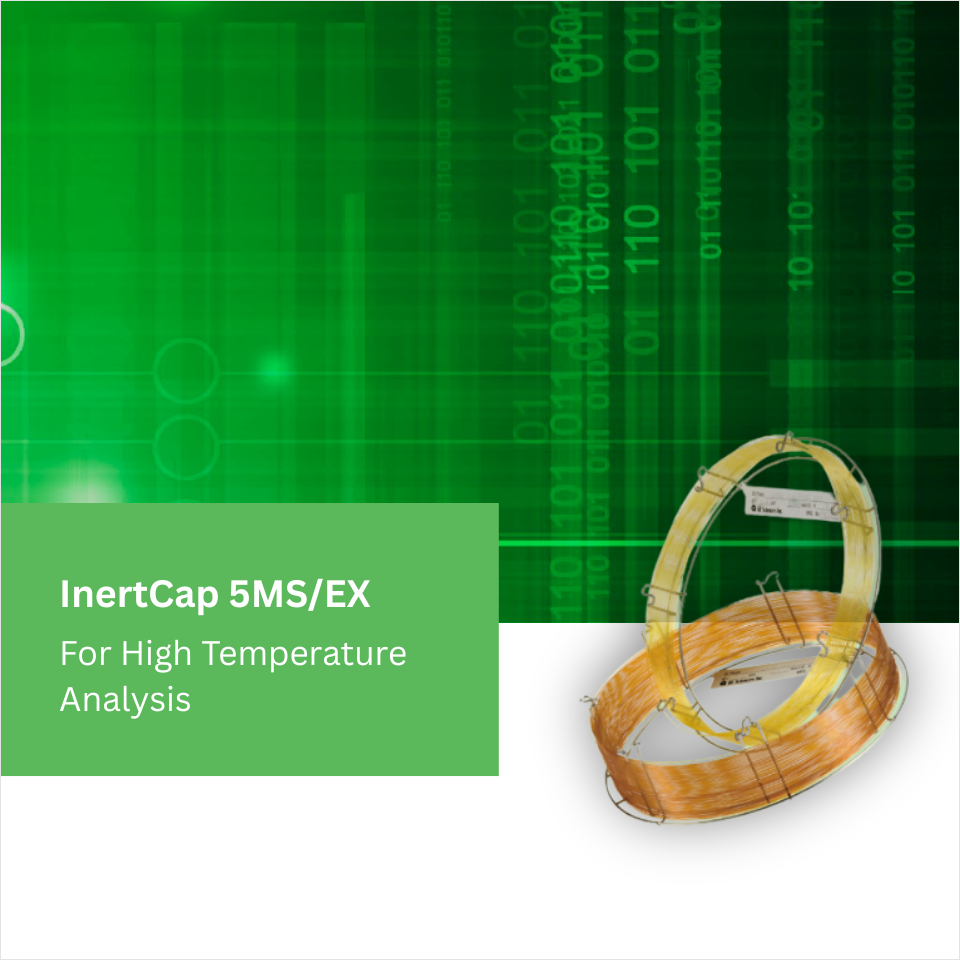

About InertCap 5MS/EX



Unparalleled Performance in GC-MS



InertCap 5MS/EX is a premium-grade GC-MS column engineered for the highest analytical demands. With world-class ultra-low bleed and outstanding inertness, it ensures reliable quantitation and sharp peak shapes even for highly active or thermally labile compounds. Ideal for trace analysis and sensitive applications, InertCap 5MS/EX delivers unmatched performance in both routine and advanced GC-MS workflows.



    Impact of Mobile Phase pH on Selectivity

    These chromatograms demonstrate how changes in mobile phase pH influence the selectivity and resolution of analytes. Inertsil Hybrid-C18 of hybrid silica gel allows stable performance across this wide pH range without loss of efficiency and reproducibility.

    Specification

    • 5 % Diphenyl (equiv.) -95 % Dimethylpolysilarylene
    • USP Phase G27
    • Low Polarity
    • Equivalent to DB-5Q, HP-5Q






Applications




Analysis of PAHs

Chromatogram — Analysis of PAHs

1. Naphthalene 2. Acenaphthylene 3. Acenaphthene 4. Fluorene 5. Phenanthrene 6. Anthracene 7. Fluoranthene 8. Pyrene 9. Benz[a]anthracene 10. Chrysene 11. Benzo[b]fluoranthene 12. Benzo[k]fluoranthene 13. Benzo[a]pyrene 14. Indeno[1,2,3-cd]pyrene 15. Dibenz[a,h]anthracene 16. Benzo[ghi]perylene

Conditions

System : GC-MS
Column : InertCap 5MS/NX 0.25 mm I.D. × 30 m, df = 0.25 µm
Col. Temp. : 50 °C (2 min) → 7 °C/min → 310 °C (10 min)
Carrier Gas : He, 40 cm/s constant
Inlet Temp. : 250 °C
Inlet Mode : Splitless
Purge : 5 mL/min
Detection : MS TIC (m/z 70–400)
I.S. Temp. : 230 °C
Sample Size : 1 µL (0.08 ppm – 2 ppm)
Analytes :
