HILIC Columns

HPLC columns for extraction by HILIC (Hydrophilic Interaction Chromatography) mode. GL Sciences HILIC columns are designed for the analysis of neutral and basic compounds providing excellent peak shape. A choice of phases are available for specificity towards target analytes, including some purpose-built columns such as for sugar analysis. Read more

Grid List
Filters
per page
InertSustain NH2
InertSustain NH2
InertSustain NH2 shows far superior stability compared to other brand available aminopropyl columns, as our newly developed “Evolved Surface Silica” is chemically bonded with aminopropyl group. Generally, aminopropyl columns are used for applications that are hard to be separated in a reversed phase mode, such as simultaneous analysis of ...
From $207.00
InertSustain Amide HILIC HPLC Columns
InertSustain Amide
InertSustain Amide column is a HILIC (Hydrophilic Interaction Chromatography) column for enhanced retention of extremely polar compounds. It offers the strongest retentivity among the Amide columns available in the market due to the usage and bonding of carbamoyl groups. Superior stability and durability even under water rich mobile phase...
From $207.00
Inertsil NH2 HILIC Amino HPLC Columns
Inertsil NH2
Inertsil NH2 amino column shows far superior stability compared to other brand available aminopropyl columns, as our newly developed "Evolved Surface Silica" is chemically bonded with aminopropyl group. Generally, aminopropyl columns are used for applications that are hard to be separated in a reversed phase mode, such as simultaneous ana...
From $207.00
Inertsil HILIC
Inertsil HILIC
HILIC is, abbreviated name for Hydrophilic Interaction Chromatography, and it was developed as an alternative to reversed phase chromatography for highly polar compounds. Inertsil HILIC is the column which chemically bonded with diol group, and it provides excellent peak shape for neutral and basic compounds. In HILIC mode, generally when...
From $207.00
Inertsil Amide HILIC HPLC Columns
Inertsil Amide
Inertsil Amide column is bonded of carbamoyl group, and it shows strong retention of highly polar compounds. As shown below, compared to other commercial columns, Inertsil Amide column showed high retentivity. Inertsil Amide column provides excellent performance for those hard to retain compounds using an ODS column with a long lifetime.
From $207.00
5020-16791 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.05 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.05 mm
SKU# 5020-16791
$739.00
5020-16792 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.05 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.05 mm
SKU# 5020-16792
$785.00
5020-16793 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.05 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.05 mm
SKU# 5020-16793
$831.00
5020-16794 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.075 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.075 mm
SKU# 5020-16794
$739.00
5020-16795 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.075 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.075 mm
SKU# 5020-16795
$785.00
5020-16796 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.075 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.075 mm
SKU# 5020-16796
$831.00
5020-16797 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.1 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.1 mm
SKU# 5020-16797
$739.00
5020-16798 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.1 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.1 mm
SKU# 5020-16798
$785.00
5020-16799 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.1 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.1 mm
SKU# 5020-16799
$831.00
5020-16800 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.2 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 50 x 0.2 mm
SKU# 5020-16800
$739.00
5020-16801 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.2 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 150 x 0.2 mm
SKU# 5020-16801
$785.00
5020-16802 InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.2 mm
InertSustain NH2 Capillary EX-Nano Column, 3 µm, 250 x 0.2 mm
SKU# 5020-16802
$831.00
5020-16784 InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.3 mm
InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.3 mm
SKU# 5020-16784
$739.00
5020-16785 InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.3 mm
InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.3 mm
SKU# 5020-16785
$785.00
5020-16786 InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.5 mm
InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.5 mm
SKU# 5020-16786
$739.00
5020-16787 InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.5 mm
InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.5 mm
SKU# 5020-16787
$785.00
5020-16788 InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.7 mm
InertSustain NH2 Capillary EX Column, 3 µm, 50 x 0.7 mm
SKU# 5020-16788
$739.00
5020-16789 InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.7 mm
InertSustain NH2 Capillary EX Column, 3 µm, 150 x 0.7 mm
SKU# 5020-16789
$785.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 30 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 30 x 1.0 mm (analytical)
SKU# 5020-16768
$462.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 50 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 50 x 1.0 mm (analytical)
SKU# 5020-16769
$485.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 75 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 75 x 1.0 mm (analytical)
SKU# 5020-16770
$554.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 100 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 100 x 1.0 mm (analytical)
SKU# 5020-16771
$612.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 150 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 150 x 1.0 mm (analytical)
SKU# 5020-16772
$658.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 250 x 1.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 250 x 1.0 mm (analytical)
SKU# 5020-16773
$739.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 30 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 30 x 1.5 mm (analytical)
SKU# 5020-16774
$462.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 50 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 50 x 1.5 mm (analytical)
SKU# 5020-16775
$485.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 75 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 75 x 1.5 mm (analytical)
SKU# 5020-16776
$554.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 100 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 100 x 1.5 mm (analytical)
SKU# 5020-16777
$612.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 150 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 150 x 1.5 mm (analytical)
SKU# 5020-16778
$658.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 250 x 1.5 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 250 x 1.5 mm (analytical)
SKU# 5020-16779
$739.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 20 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 20 x 2.1 mm (analytical)
SKU# 5020-16731
$473.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 30 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 30 x 2.1 mm (analytical)
SKU# 5020-16732
$473.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 50 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 50 x 2.1 mm (analytical)
SKU# 5020-16733
$519.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 75 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 75 x 2.1 mm (analytical)
SKU# 5020-16734
$577.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 100 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 100 x 2.1 mm (analytical)
SKU# 5020-16735
$623.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 150 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 150 x 2.1 mm (analytical)
SKU# 5020-16736
$669.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 250 x 2.1 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 250 x 2.1 mm (analytical)
SKU# 5020-16737
$739.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 20 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 20 x 3.0 mm (analytical)
SKU# 5020-16738
$473.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 30 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 30 x 3.0 mm (analytical)
SKU# 5020-16739
$473.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 50 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 50 x 3.0 mm (analytical)
SKU# 5020-16740
$519.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 75 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 75 x 3.0 mm (analytical)
SKU# 5020-16741
$577.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 100 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 100 x 3.0 mm (analytical)
SKU# 5020-16742
$623.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 150 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 150 x 3.0 mm (analytical)
SKU# 5020-16743
$669.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 250 x 3.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 250 x 3.0 mm (analytical)
SKU# 5020-16744
$739.00
Picture of InertSustain NH2 HPLC Column, 3 µm, 20 x 4.0 mm (analytical)
InertSustain NH2 HPLC Column, 3 µm, 20 x 4.0 mm (analytical)
SKU# 5020-16745
$473.00

HILIC Column Specification​


Columns

Features

USD Code

Particle Size (µm)

Pore Size (nm)

Surface Area (m2/g)

Carbon Loading (%)

Recommended pH range

InertSustain Amide

First choice column for HILIC mode.

L68

3, 5

10

350

15

2 - 8.5

Inertsil Amide

Effective when the retention of high polar compounds is further strengthened.

L68

3, 5

10

450

18

2 - 7.5

Inertsil HILIC

Effective when the overall retention is to be reduced or when the separation pattern is to be changed.

L20

3, 5

10

450

20

2 - 7.5

InertSustain NH2

First choice column for sugar analysis.

L8

3, 5

10

350

7

2 - 7.5

Inertsil NH2

Effective for intensifying retention in sugar analysis

L8

3, 5

10

450

8

2 - 7.5



HILIC Mode Chromatography

As an alternative to reversed-phase chromatography, Hydrophilic Interaction Chromatography (HILIC) was developed for analyses of highly polar compounds. The retention in HILIC mode usually increases with increasing concentration of an organic compound. Moreover, the stability is improved by adding a basic solvent (such as ammonium acetate) to the eluent.

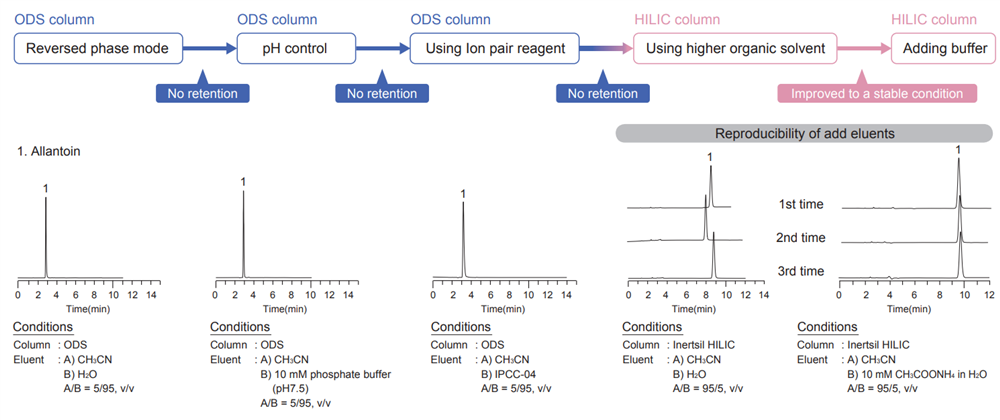

Comparison of Separation Mode between Reversed Phase and HILIC Columns

Comparison of Separation Mode between Reversed Phase and HILIC Columns

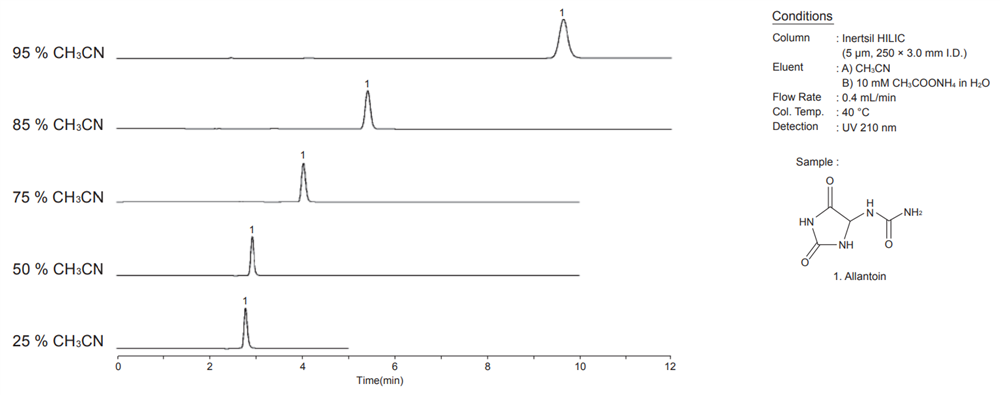

 Correlation between Retention Time and the Concentration of CH3CN in Mobile Phase

Correlation between Retention Time and the Concentration of CH3CN in Mobile Phase

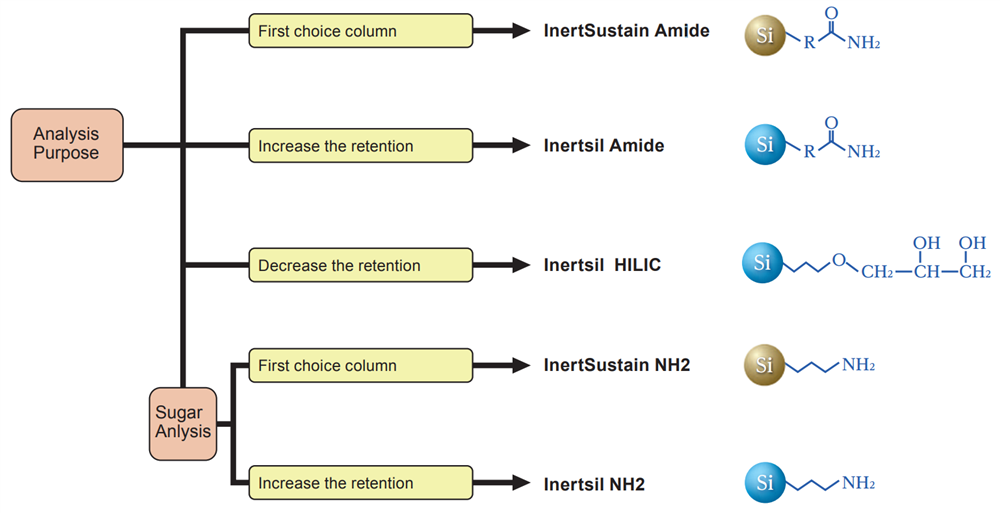

HILIC Column Selection

HILIC Column Selection flowchart


HILIC Columns Resources:​

  • Download GL Sciences 2022 HILIC Catalog —  Download & Discover GL Sciences' HILIC Columns
  • Search Application Notes For HILIC Columns — Search  Applications Database
  • HPLC HILIC Columns’ Specifications and Selection Guide — Summary of GL Sciences HILIC Columns Specifications and guide to select. Learn More
  • HPLC Column Selection By USP  — Recommended GL Sciences HPLC Columns based on USP Code. Learn More
  • HPLC Column End-fittings  — Summary of GL Sciences' end-fitting style & recommended operating pressure. Learn More
  • How to Select a Guard Column  — Download guide to select the right guard column. Learn More
  • Choosing Preparative Column  — Download Guide to select the right preparative column. Learn More
