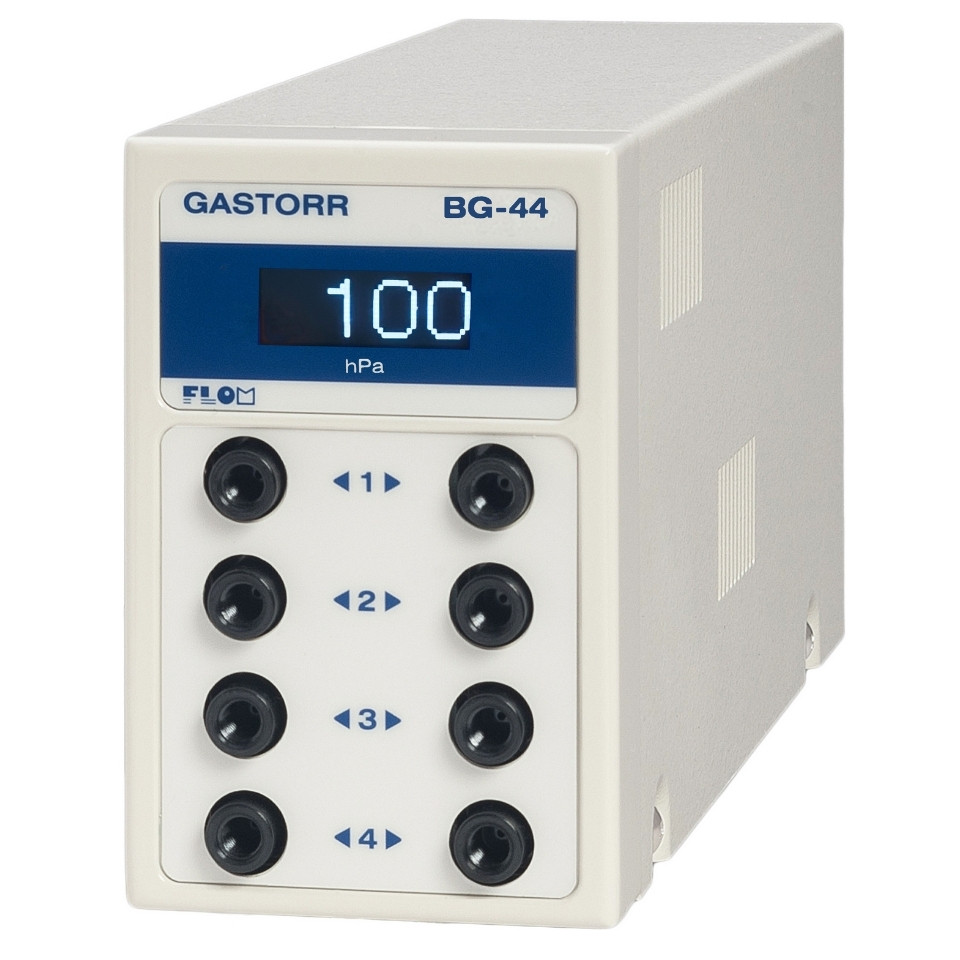

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed)

SKU: BG-44-02
Brand: FLOM
A trouble-less degassing series equipped with larger internal volume and real time display

Features

• Pick the model with the right internal volume for your application
• Auto cleaning function prevents vacuum pump deterioration
• CPU control achieves stable degassing
• Independent chamber design prevents solvent contamination
• Choose from 2 channel or 4 channel configurations
• Real time display of vacuum level
$2,340.00
$2,600.00
In stock
Free Shipping
+ -

Specifications

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed) SKU: BG-44-02

Overview

Specifications

Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed)

Channels4
Internal Volume510μL
Flow rate≦ 10 mL/min
Vacuum range100 hPa fixed
Thread size1/4-28 UNF
Wetted materialTeflon ™ AF*¹, ETFE, PTFE
Remote controlInput: - Output:Error signal
Dimensions108 (H) ×70 (W) × 240 (D) mm, excluding protuberances
WeightApprox. 2.1 kg
PowerAC 100 - 240 V (50 / 60 Hz) MAX 80 VA
Order codeSGA-G3004

*1:Teflon ™ AF is a registered trademark of the Chemours Corporation. Note: cannot be used with fluorinated solvents.

Applications

There are application notes for Gastorr BG-44-02 - 4 ch, 510 uL, 100 hPa (fixed).
